DRIVE FACE 🏍️ NHX 110
TRANSMISSION 🏍️ NHX 110

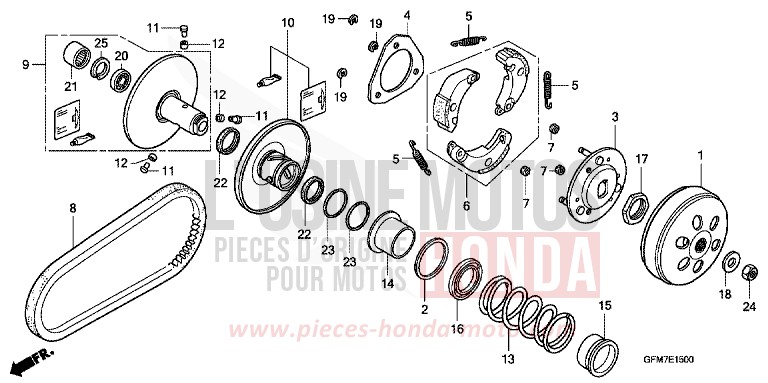

DRIVEN FACE for NHX 110 CANDY LUCID RED (R264) from 2008

DRIVEN FACE for NHX 110 CANDY LUCID RED (R264) from 2008
Reference
Product name
#1 22100-GFM-900

OUTER COMP, CLUTCH

Price €55.14
#2 22109-KGF-910

SEAT, DRIVEN SPRING

Price €9.43
#3 22350-GFM-890

PLATE COMP, DRIVE

Price €54.98
#4 22361-GFM-900

PLATE, CLUTCH SIDE

Price €8.51
#5 22401-KVB-900

SPRING, CLUTCH

Price €1.91
#6 22535-KVB-900

WEIGHT SET, CLUTCH

Price €107.30
#7 22804-GB2-000

RUBBER, CLUTCH DAMPER

Price €5.36
#8 23100-GFM-890

BELT, DRIVE

Price €45.90
#9 23205-GFM-891

FACE SET, DRIVEN

Price €258.29
#10 23224-GFM-901

FACE SET, MOVABLE DRIVEN

Price €116.08
#11 23225-KSY-900

PIN, ROLLER GUIDE

Price €4.50
#12 23226-GFM-900

ROLLER, GUIDE

Price €4.13
#13 23233-KVB-900

SPRING, DRIVEN FACE

Price €15.14
#14 23237-GFM-970

COLLAR, SEAL

Price €14.23
#15 23238-GFM-900

COLLAR, SPRING

Price €10.91
#16 23239-GFM-970

CAP, SPRING

Price €7.25
Contact us
#17 90202-187-000

NUT, SPECIAL, 28MM

Price €8.65
#18 90441-GFM-970

WASHER, 122X29X25

Price €5.66
#19 90605-166-720

CIRCLIP, 7MM

Price €4.19
#20 91004-KCW-880

BEARING, RADIAL BALL, 6902U

Price €21.01
#21 91005-KCW-880

BEARING, NEEDLE, 20X29X18

Price €30.88
#22 91211-KCW-880

SEAL, DRIVEN FACE, 34X41X4

Price €7.44
#23 91384-KVB-900

O-RING, 388X19

Price €4.60
#24 94030-12200

NUT, HEX, 12MM

Price €1.39
#25 94520-28000

CIRCLIP, INTERNAL, 28MM

Price €1.70
