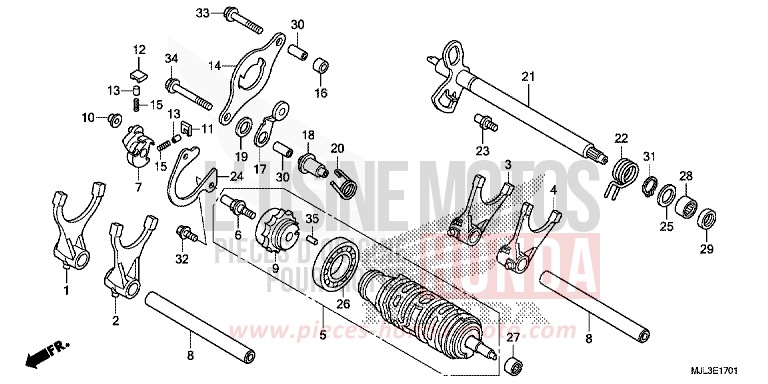

GEARSHIFT DRUM (NC700XD/750XD) for NC750XD MAT PEARL GLARE WHITE (NHB54) from 2014

GEARSHIFT DRUM (NC700XD/750XD) for NC750XD MAT PEARL GLARE WHITE (NHB54) from 2014
Reference
Product name
#1 24211-MGS-D20

FORK, R GEARSHIFT (MAIN)

Price €92.14
#2 24212-MGS-D20

FORK, L GEARSHIFT (MAIN)

Price €94.90
#3 24213-MGS-D20

FORK, R GEARSHIFT (COUNTER)

Price €25.26
#4 24214-MGS-D20

FORK, L GEARSHIFT (COUNTER)

Price €25.26
#5 24310-MGS-D21

DRUM ASSY, GEARSHIFT

Price €720.71
#6 24315-MGS-D20

PIN, SHIFTER

Price €19.57
#7 24321-KT8-030

SHIFTER, DRUM

Price €93.31
#8 24321-MAS-000

SHAFT, GEARSHIFT FORK

Price €32.33
#9 24322-MGE-D01

CENTER, SHIFT DRUM

Price €70.56
#10 24322-MM4-000

COLLAR, SHIFTER

Price €7.21
#11 24324-KA3-711

PAWL A, RATCHET

Price €13.07
#12 24325-KA3-711

PAWL B, RATCHET

Price €13.07
#13 24326-KBH-901

PLUNGER, PAWL

Price €11.40
#14 24328-MGS-D20

PLATE, CHANGE GUIDE

Price €21.54
#15 24329-KA3-740

SPRING, PAWL PLUNGER

Price €4.37
#16 24329-MGS-D20

COLLAR, GUIDE PLATE DISTANCE

Price €10.42
#17 24430-MGE-000

STOPPER COMP, DRUM

Price €23.70
#18 24434-MGS-D20

COLLAR, SHIFT DRUM STOPPER PLATE

Price €17.23
#19 24435-MGE-000

COLLAR, DRUM STOPPER SIDE

Price €8.66
#20 24435-MGS-D20

SPRING, SHIFT DRUM STOPPER

Price €11.96
#21 24610-MGS-D20

SPINDLE COMP, GEARSHIFT

Price €255.18
#22 24651-MGS-D20

SPRING, GEARSHIFT RETURN

Price €16.58
#23 24652-HA0-000

PIN, GEARSHIFT RETURN SPRING

Price €10.91
#24 24655-MGS-D30

PLATE, SHIFT DRUM BEARING SETTING

Price €10.67
#25 90433-KE1-000

WASHER, 14MM

Price €4.51
#26 91007-MGS-D21

BEARING, RADIAL BALL, 25X47X8

Price €37.90
#27 91024-MGS-D21

BEARING, NEEDLE, 12X18X12

Price €13.87
#28 91028-MGS-D21

BEARING, NEEDLE, 14X20X12

Price €18.46
#29 91203-KK3-830

OIL SEAL, 14X22X5

Price €4.13
#30 94301-08200

DOWEL PIN, 8X20

Price €2.02
#31 94510-14000

CIRCLIP, EXTERNAL, 14MM

Price €0.86
#32 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#33 95701-0603500

BOLT, FLANGE, 6X35

Price €1.32
#34 95701-0605500

BOLT, FLANGE, 6X55

Price €1.49
#35 96220-40080

ROLLER, 4X8

Price €0.48
