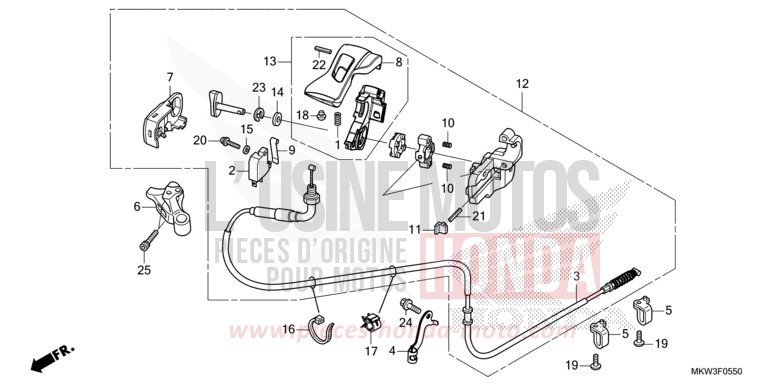

PARKING BRAKE LEVER for NC750XD GRAND PRIX RED (R380) from 2021

PARKING BRAKE LEVER for NC750XD GRAND PRIX RED (R380) from 2021
Reference
Product name
#1 24271-743-000

SPRING, BALL SETTING

Price €2.22
#2 35340-MGS-D31

ASSY. SWITCH STOP FRONT

Price €52.01
#3 43450-MKW-D11

CABLE COMP, PARKING BRAKE

Price €110.33
#4 43455-MKW-D10

CLAMPER, PARKING CABLE

Price €21.16
#5 43456-MGS-D70

GUIDE, BRAKE OF STATIONNEMENT

Price €14.16
#6 47111-MKW-D10

HOLDER, UPPER

Price €111.25
#7 47117-MGS-D50

COVER, HOLDER

Price €10.44
#8 47152-MGS-D51 i

LEVER, PARKING TOP

Price €31.04
#9 47154-MGE-D00

SPRING, SWITCH

Price €24.82
#10 47155-MGE-D00

SPRING, PLUNGER

Price €9.66
#11 47156-MGE-D00

CAP, LOWER HOLDER

Price €8.72
#12 47200-MKW-D10

LEVER ASSY, PARKING

Price €668.86
#13 47210-MGS-D51 i

LEVER COMP, PARKING

Price €116.56
#14 90401-430-000 i

WASHER, 10.2MM

Price €6.26
#15 90515-046-810 i

WASHER PLATE, 4X8

Price €3.28
#16 90651-KV6-003 i

STRIPE, CABLE 165MM (BLACK)

Price €9.78
#17 90690-GHB-641 i

WIRE CLIP, 10MM

Price €2.08
#18 90801-SB0-000

PLUG, CHANGE REINFORCEMENT

Price €3.85
#19 93500-050160G i

CYLINDRICAL HEAD SCREW, 5X16

Price €0.78
#20 93892-0401407

SCREW A TETE A WASHER, 4X14

Price €1.04
#21 94305-30223

PIN, SPRING, 3X22

Price €2.38
#22 94305-30283

PIN, SPRING, 3X28

Price €2.38
#23 94540-09018

E-RING, 9MM

Price €3.84
#24 96001-0601400 i

FLANGE BOLT, 6X14

Price €1.34
#25 96600-0602007 i

INNENSECHSKANTBOLT, 6X20

Price €1.18
