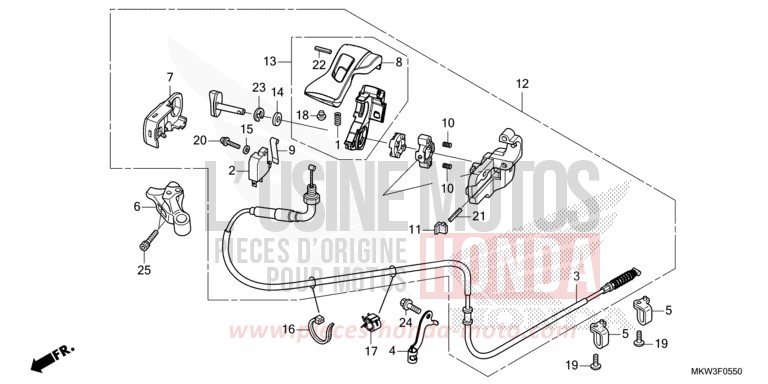

PARKING BRAKE LEVER for NC750XD GLINT WAVE BLUE METALLIC (B197) from 2021

PARKING BRAKE LEVER for NC750XD GLINT WAVE BLUE METALLIC (B197) from 2021
Reference
Product name
#1 24271-743-000

SPRING, BALL SETTING

Price €2.17
#2 35340-MGS-D31

SWITCH ASSY, FR STOP (ALPS)

Price €41.32
#3 43450-MKW-D11

CABLE COMP, PARKING BRAKE

Price €71.30
#4 43455-MKW-D10

CLAMPER, PARKING CABLE

Price €14.38
#5 43456-MGS-D70

GUIDE, PARKING BRAKE

Price €14.14
#6 47111-MKW-D10

HOLDER, UPPER

Price €100.25
#7 47117-MGS-D50

COVER, HOLDER

Price €8.90
#8 47152-MGS-D51

LEVER, PARKING TOP

Price €24.92
#9 47154-MGE-D00

SPRING, SWITCH

Price €21.80
#10 47155-MGE-D00

SPRING, PLUNGER

Price €8.04
#11 47156-MGE-D00

CAP, LOWER HOLDER

Price €9.17
#12 47200-MKW-D10

LEVER ASSY, PARKING

Price €475.80
#13 47210-MGS-D51

LEVER COMP, PARKING

Price €99.37
#14 90401-430-000

WASHER, 102MM

Price €5.83
#15 90515-046-810

WASHER, PLAIN, 4X8

Price €3.49
#16 90651-KV6-003

BAND, WIRE, 165MM (BLACK)

Price €7.72
#17 90690-GHB-641

CLIP, CABLE, 10MM

Price €2.04
#18 90801-SB0-000

PLUG, CHANGE REINFORCEMENT

Price €3.90
#19 93500-050160G

SCREW, PAN, 5X16

Price €0.77
#20 93892-0401407

SCREW-WASHER, 4X14

Price €1.02
#21 94305-30223

PIN, SPRING, 3X22

Price €2.33
#22 94305-30283

PIN, SPRING, 3X28

Price €2.33
#23 94540-09018

E-RING, 9MM

Price €3.77
#24 96001-0601400

BOLT, FLANGE, 6X14

Price €1.32
#25 96600-0602007

BOLT, SOCKET, 6X20

Price €1.15
