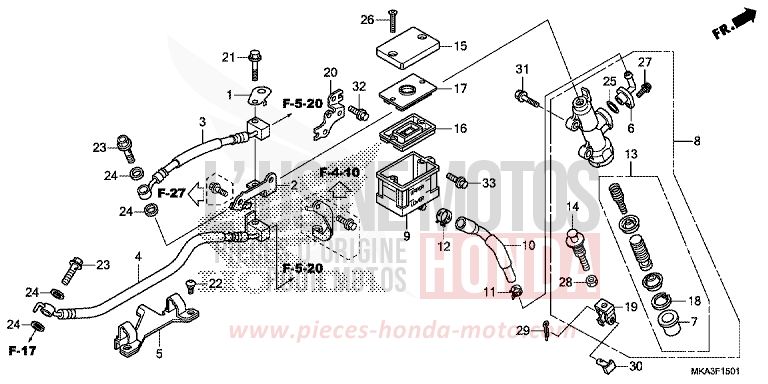

REAR BRAKE MASTER CYLINDER (NC750XA/XD) for NC750XD GLINT WAVE BLUE METALLIC (B197) from 2016

REAR BRAKE MASTER CYLINDER (NC750XA/XD) for NC750XD GLINT WAVE BLUE METALLIC (B197) from 2016
Reference
Product name
#1 38514-MGS-D80

CLAMPER, SENSOR CORD

Price €10.26
#2 43160-MGS-D50

STAY, RR BRAKE HOSE

Price €47.00
#3 43310-MGS-D81

HOSE COMP A, RR BRAKE

Price €79.31
#4 43314-MGS-D81

HOSE COMP E, RR BRAKE

Price €134.58
#5 43468-MGS-D31

GUIDE, RR BRAKE HOSE

Price €32.27
#6 43503-MER-D01

CONNECTOR, MASTER CYLINDER

Price €20.23
#7 43504-MB2-006

BOOT COMP

Price €13.19
#8 43510-MGS-D31

CYLINDER SUB ASSY, RR MASTER

Price €234.83
#9 43511-KT8-006

CUP COMP, OIL

Price €59.53
#10 43512-MGS-D31

HOSE COMP, RR MASTER CYLINDER

Price €47.23
#11 43514-KS6-701

CLAMP, MASTER CYLINDER OIL HOSE

Price €15.61
#12 43514-MN9-006

CLAMP, MASTER CYLINDER OIL HOSE

Price €14.05
#13 43520-MB2-315

PISTON SET, MASTER CYLINDER (NISSIN)

Price €98.35
#14 43530-MJ0-006

ROD COMP, PUSH

Price €38.14
#15 45513-KK1-771

CAP, MASTER CYLINDER

Price €54.41
#16 45520-MG7-006

DIAPHRAGM

Price €24.06
#17 45521-HA2-006

PLATE, DIAPHRAGM

Price €13.94
#18 46182-MEL-D21

CIRCLIP

Price €5.16
#19 46504-KV6-702

JOINT, BRAKE ROD

Price €8.86
#20 50601-MGS-D30

STAY, OIL CUP

Price €17.71
#21 90013-GHB-700

BOLT, FLANGE, 6X35

Price €5.86
#22 90102-MKA-D80

SCREW, SPECIAL, 5X14

Price €8.84
#23 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#24 90545-300-000

WASHER, OIL BOLT

Price €6.41
#25 91212-422-006

O-RING, 148X24

Price €5.78
#26 93600-040401G

SCREW, FLAT, 4X40

Price €0.62
#27 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#28 94002-080000S

NUT, HEX, 8MM

Price €1.04
#29 94201-20150

PIN, SPLIT, 20X15

Price €0.77
#30 95015-54000

PIN D, JOINT

Price €2.94
#31 95701-0602200

BOLT, FLANGE, 6X22

Price €1.39
#32 96001-0601207

BOLT, FLANGE, 6X12

Price €1.22
#33 96001-0601400

BOLT, FLANGE, 6X14

Price €1.32
