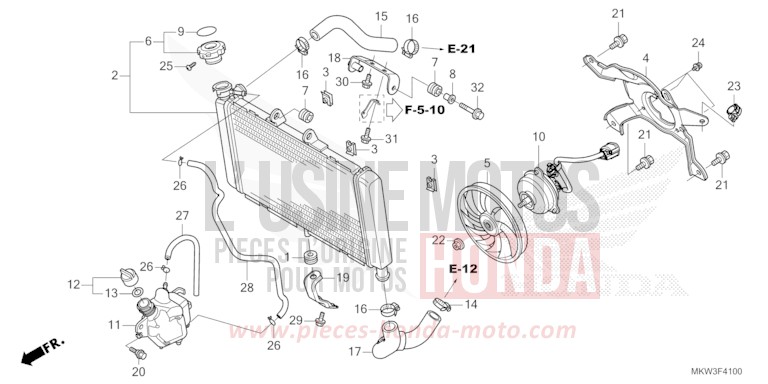

RADIATOR for NC750XD CANDY CHROMOSPHERE RED (R381) from 2023

RADIATOR for NC750XD CANDY CHROMOSPHERE RED (R381) from 2023
Reference
Product name
#1 17622-GB7-900

RUBBER OF TAMPON

Price €8.39
#2 19010-MGS-D31

RADIATOR COMP

Price €887.52
#3 19014-KEA-003

NUT, POSE (6MM)

Price €7.20
#4 19016-MGS-D31

SHROUD COMP

Price €212.94
#5 19020-MGS-D31

KUEHLVENTILATOR COMP. (TRAD)

Price €113.93
#6 19045-MFF-A51

CAP COMP., RADIATOR

Price €47.45
#7 19051-MGS-D30

RUBBER OF MOUNTING OF RADIATOR

Price €7.43
#8 19052-MGH-640 i

MOUNTING COLLAR, RADIATOR

Price €7.48
#9 19055-KPC-871 i

GASKET, KUHLERVERSCHLUSS (BILDSYMBOL)

Price €14.33
#10 19080-MKW-D01

MOTOR ASSY, FAN

Price €379.54
#11 19101-MGS-D30

TANK COMP, RADIATOR RESERVE

Price €101.60
#12 19106-GET-000

ASSY. CAP OF TANK OF SECOURS

Price €21.38
#13 19107-GET-000

GASKET OF TANK OF RESERVE

Price €6.91
#14 19504-MGP-000

WATER HOSE CLIP, 35MM

Price €24.43
#15 19505-MGS-D30

HOSE, RADIATOR UPPER

Price €28.32
#16 19505-ML3-770

WATER HOSE CLIP

Price €18.26
#17 19506-MGS-D30

HOSE, RADIATOR LOWER

Price €39.85
#18 19515-MKW-D00

STAY, RADIATOR UPPER

Price €25.33
#19 19516-MJH-Y00ZA

STAY, RADIATOR LOWER NH303M (NH303M MAT AXIS...

Price €25.06
#20 90111-162-000 i

FLANGE BOLT, 6MM

Price €7.55
#21 90120-GHB-601

WASHER A BOLT, 6X12

Price €7.55
#22 90315-MFL-003

FLANGE NUT, 3MM

Price €6.38
#23 90683-MGC-920

CLIP OF HARNESS ELECTRIC

Price €7.08
#24 93893-0400807 i

SCREW A HEAD A WASHER, 4X8

Price €1.08
Contact us
#25 93901-22180

SELF-TAPPING SCREW, 3X8

Price €0.64
#26 95002-02100 i

PIPE CLIP (B10)

Price €1.08
#27 95005-5525020

PIPE

Price €7.40
#28 95005-5558020

TUBE, 53X580 (95005-55001-20M)

Price €14.88
#29 95701-0601402 i

FLANGE BOLT, 6X14

Price €1.46
#30 95701-0601408 i

FLANGE BOLT, 6X14

Price €1.15
#31 95701-0601808 i

FLANGE BOLT, 6X18

Price €1.08
#32 95701-0602508 i

FLANGE BOLT, 6X25

Price €1.25
