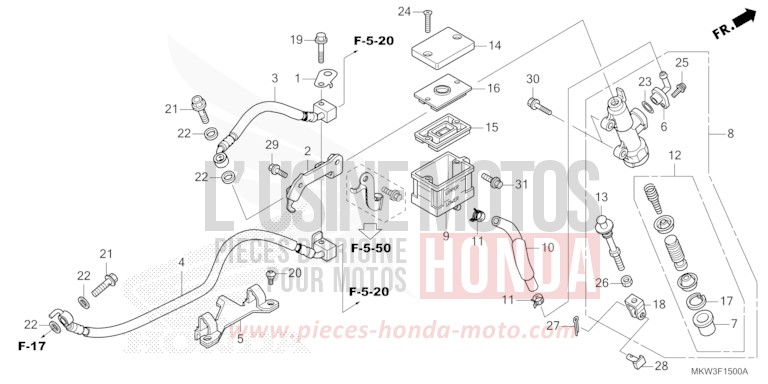

REAR BRAKE MASTER CYLINDER for NC750XD CANDY CHROMOSPHERE RED (R381) from 2023

REAR BRAKE MASTER CYLINDER for NC750XD CANDY CHROMOSPHERE RED (R381) from 2023
Reference
Product name
#1 38514-MGS-D80

CLAMPER, SENSOR CORD

Price €10.26
#2 43160-MKW-D10

STAY, RR BRAKE HOSE

Price €39.47
#3 43310-MKW-D01

HOSE COMP A, RR BRAKE

Price €75.35
#4 43314-MGS-D81

HOSE COMP E, RR BRAKE

Price €134.58
#5 43468-MGS-D31

GUIDE, RR BRAKE HOSE

Price €32.27
#6 43503-MER-D01

CONNECTOR, MASTER CYLINDER

Price €20.23
#7 43504-MB2-006

BOOT COMP

Price €13.19
#8 43510-MKW-D01

CYLINDER SUB ASSY, RR BRAKE MASTER (NISSIN)

Price €220.67
#9 43511-KV3-831

CUP COMP, OIL

Price €52.86
#10 43512-MKW-D01

HOSE COMP, RR BRAKE MASTER CYLINDER

Price €43.52
#11 43514-KS6-701

CLAMP, MASTER CYLINDER OIL HOSE

Price €15.61
#12 43520-MB2-315

PISTON SET, MASTER CYLINDER (NISSIN)

Price €98.35
#13 43530-MS8-006

ROD COMP, PUSH

Contact us
#14 45513-KK1-771

CAP, MASTER CYLINDER

Price €54.41
#15 45520-MG7-006

DIAPHRAGM

Price €24.06
#16 45521-HA2-006

PLATE, DIAPHRAGM

Price €13.94
#17 46182-MEL-D21

CIRCLIP

Price €5.16
#18 46504-MT8-006

JOINT, BRAKE ROD

Price €18.17
#19 90013-GHB-700

BOLT, FLANGE, 6X35

Price €5.86
#20 90102-MKA-D80

SCREW, SPECIAL, 5X14

Price €8.84
#21 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#22 90545-300-000

WASHER, OIL BOLT

Price €6.41
#23 91212-422-006

O-RING, 148X24

Price €5.78
#24 93600-040401G

SCREW, FLAT, 4X40

Price €0.62
#25 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#26 94002-080000S

NUT, HEX, 8MM

Price €1.04
#27 94201-20150

PIN, SPLIT, 20X15

Price €0.77
#28 95015-54000

PIN D, JOINT

Price €2.94
#29 95701-0601407

BOLT, FLANGE, 6X14

Price €1.13
#30 95701-0602200

BOLT, FLANGE, 6X22

Price €1.39
#31 96001-0601400

BOLT, FLANGE, 6X14

Price €1.32
