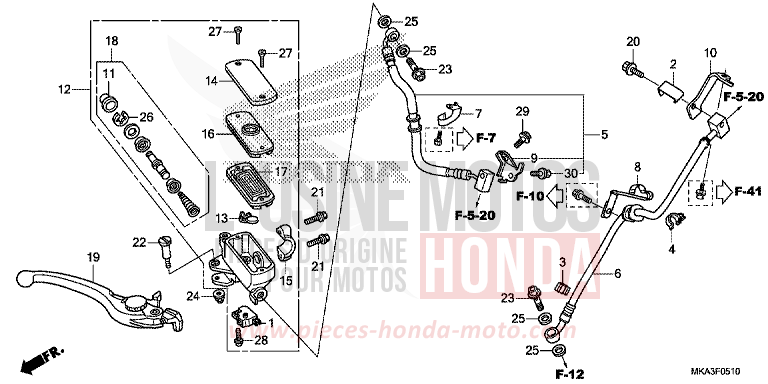

FRONT BRAKE MASTER CYLINDER (NC750XA/XD) for NC750XD CANDY ARCADIAN RED (R305) from 2016

FRONT BRAKE MASTER CYLINDER (NC750XA/XD) for NC750XD CANDY ARCADIAN RED (R305) from 2016
Reference
Product name
#1 35340-MGS-D31

SWITCH ASSY, FR STOP (ALPS)

Price €41.32
#2 38514-MJF-C10

CLAMPER, SENSOR CORD

Price €9.47
#3 38516-MGE-003

CLAMP, ABS CORD (D85)

Price €9.90
#4 38517-MGE-003

CLAMP, ABS CORD (D12)

Price €9.43
#5 45125-MGS-D81

HOSE COMP A, FR BRAKE

Price €143.04
#6 45128-MKA-D81

HOSE COMP D, FR BRAKE

Price €109.30
#7 45155-MGS-D80

CLAMPER A, FR BRAKE HOSE

Price €13.01
#8 45156-MJL-D80

CLAMPER A, FR BRAKE HOSE

Price €16.51
#9 45158-MGS-D80

STAY, FR BRAKE HOSE

Price €22.63
#10 45160-MJF-C11

STAY, FR BRAKE HOSE

Price €27.71
#11 45504-410-003

BOOT COMP

Price €15.22
#12 45510-MGS-D31

CYLINDER SUB ASSY, FR MASTER (NISSIN)

Price €306.14
#13 45512-MA6-006

PROTECTOR

Price €74.21
#14 45513-MM5-016

CAP, MASTER CYLINDER (NISSIN)

Price €52.61
#15 45517-166-006

HOLDER, MASTER CYLINDER

Price €22.57
#16 45518-MM5-006

PLATE, DIAPHRAGM

Price €15.23
#17 45520-MM5-006

DIAPHRAGM

Price €33.04
#18 45530-KVY-911

CYLINDER SET, MASTER (NISSIN)

Price €39.05
#19 53170-MEJ-016

LEVER ASSY, R HANDLE

Price €75.06
#20 90013-GHB-620

BOLT, FLANGE, 6X14

Price €5.41
#21 90013-GHB-660

BOLT, FLANGE, 6X22

Price €5.69
#22 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#23 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#24 90201-415-000

NUT, CAP, 6MM

Price €5.94
#25 90545-300-000

WASHER, OIL BOLT

Price €6.41
#26 90651-MA5-671

CIRCLIP

Price €5.83
#27 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#28 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#29 95701-0601407

BOLT, FLANGE, 6X14

Price €1.13
#30 96001-0601207

BOLT, FLANGE, 6X12

Price €1.22
