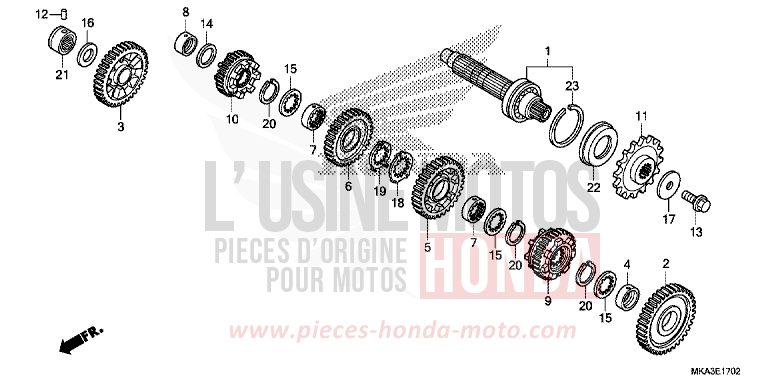

TRANSMISSION (COUNTERSHAFT) (NC750XD) for NC750XD CANDY ARCADIAN RED (R305) from 2016

TRANSMISSION (COUNTERSHAFT) (NC750XD) for NC750XD CANDY ARCADIAN RED (R305) from 2016
Reference
Product name
#1 23220-MGS-D20

COUNTERSHAFT COMP

Price €262.48
#1 23220-MKA-D50

COUNTERSHAFT COMP

Price €263.18
#2 23421-MKA-D50

GEAR, COUNTERSHAFT FIRST (40T)

Price €221.21
#3 23441-MKA-D50

GEAR, COUNTERSHAFT SECOND (40T)

Price €196.87
#4 23442-ML7-000

COLLAR, 28MM

Price €30.61
#5 23461-MKA-D50

GEAR, COUNTERSHAFT THIRD (32T)

Price €150.14
#6 23481-MKA-D50

GEAR, COUNTER FOURTH (30T)

Price €141.24
#7 23482-MV9-670

COLLAR, SPLINE, 28X31X9

Price €29.82
#8 23495-KY1-000

COLLAR, 22X13

Price €18.18
#9 23501-MKA-D50

GEAR, COUNTERSHAFT FIFTH (31T)

Price €221.21
#10 23521-MKA-D50

GEAR, COUNTERSHAFT SIXTH (32T)

Price €200.95
#11 23801-MKA-D30

SPROCKET, DRIVE (17T)

Price €108.07
#12 24261-283-000

PIN, GEARSHIFT FORK GUIDE

Price €7.90
#13 90037-422-003

BOLT, SPECIAL, 10MM

Price €10.03
#14 90452-KZ4-000

WASHER, THRUST, 22X30X1

Price €7.81
#15 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €5.57
#16 90458-292-000

WASHER, THRUST, 20MM

Price €9.53
#17 90459-438-000

WASHER, 102MM

Price €7.37
#18 90463-MR7-000

WASHER, SPLINE, 28MM

Price €10.72
#19 90464-MR7-000

WASHER, LOCK, 28MM

Price €10.57
#20 90603-MN4-000

CIRCLIP, 28MM

Price €7.90
#21 91022-KT7-003

BEARING, NEEDLE, 20MM (NTN)

Price €53.16
#22 91207-KT8-003

OIL SEAL, 34X62X8

Price €15.18
#23 94560-62200

RING, SNAP, 62MM

Price €3.13
