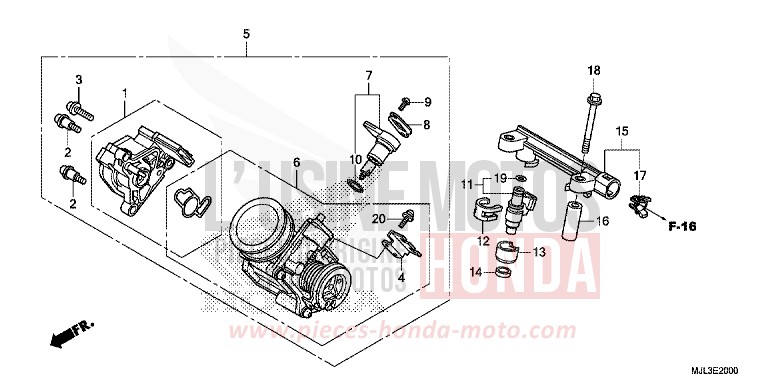

THROTTLE BODY for NC750XA CANDY ARCADIAN RED (R305) from 2014

THROTTLE BODY for NC750XA CANDY ARCADIAN RED (R305) from 2014
Reference
Product name
#1 16060-MFR-671

SENSOR SET

Price €369.85
#2 16081-KYJ-901

SCREW, TORX, 5X87

Price €6.37
#3 16082-KYJ-901

SCREW, TORX, 5X17

Price €5.35
#4 16169-MGS-D31

STAY, WIRE

Price €61.25
#5 16400-MGS-D31

BODY ASSY, THROTTLE (GQ3UA A)

Price €499.49
#6 16410-MGS-D31

BODY SET

Price €280.16
#7 16430-MGS-D31

VALVE SET, IDLE AIR CONTROL

Price €306.71
#8 16432-MFE-641

PLATE, IDLE AIR CONTROL VALVE

Price €22.27
#9 16433-HN8-A61 i

SCREW, TORX

Price €6.94
#10 16435-HN8-A61

O-RING, 178X19

Price €33.77
#11 16450-MFA-D02

INJECTOR ASSY, FUEL

Price €277.34
#12 16451-MFL-000

CLIP, INJECTOR

Price €10.18
#13 16459-MGS-D30

COVER, INJECTOR

Price €7.51
#14 16472-MGS-D30

SEAL RING, INJECTOR

Price €9.83
#15 16640-MGS-D31

PIPE COMP, FUEL

Price €106.69
#16 16647-MGS-D30

COLLAR, FUEL PIPE

Price €12.07
#17 17711-MGE-003 i

RETAINER

Price €14.57
#18 90005-MGS-D30

BOLT, FLANGE, 6X55

Price €7.67
#19 91301-P7A-004

O-RING, 78X19

Price €5.41
#20 93892-0501218 i

SCREW-WASHER, 5X12

Price €1.34
# 06112-MJL-A30 i

GASKET KIT B

Price €146.93
# 11522-MJL-D30 i

GASKET, CHANGE SWITCH

Price €13.42
# 15154-MAT-000

PACKING, OIL STRAINER

Price €11.04
# 90442-028-000

WASHER, SEALING, 8MM

Price €5.71
# 90443-MJ6-000

WASHER, NEUTRAL

Price €5.02
# 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
# 90488-425-000 i

WASHER, SEALING, 6MM

Price €7.07
# 90545-KF0-000

WASHER, 12MM

Price €6.54
# 91301-MEE-003

O-RING, 32X17

Price €5.82
# 91303-377-000 i

O-RING, 138X25

Price €9.58
# 91303-KF0-003 i

O-RING, 148X24 (ARAI)

Price €6.06
# 91307-035-000 i

O-RING, 18X3

Price €1.44
# 91307-PY4-003 i

O-RING, 245X19

Price €4.72
# 91309-425-003 i

O-RING, 244X31 (ARAI)

Price €12.66
# 91310-MGE-D01

O-RING, 165X25

Price €14.00
# 91313-393-003 i

O-RING, 78X22 (ARAI)

Price €5.18
# 91344-PC9-004 i

O-RING, 29X24 (NOK)

Price €5.98
# 94109-12000 i

WASHER, DRAIN PLUG, 12MM

Price €1.78
