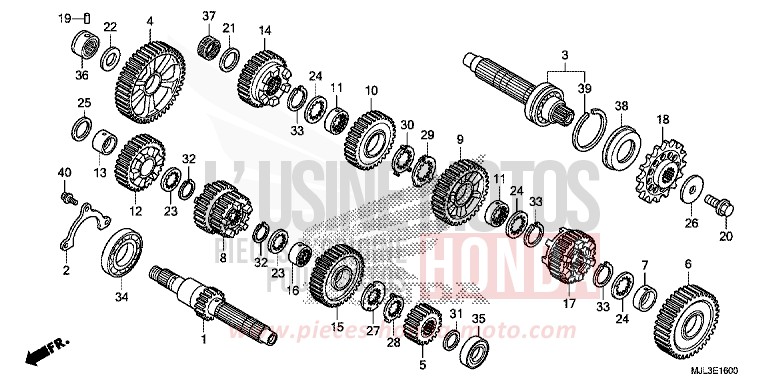

TRANSMISSION (NC750X/XA) for NC750XA CANDY ARCADIAN RED (R305) from 2014

TRANSMISSION (NC750X/XA) for NC750XA CANDY ARCADIAN RED (R305) from 2014
Reference
Product name
#1 23211-MGS-D30 i

MAINSHAFT (16T)

Price €520.44
#2 23212-MGS-D30

PLATE, MAINSHAFT BEARING SETTING

Price €10.57
#3 23220-MGS-D30 i

COUNTERSHAFT COMP

Price €511.97
#4 23421-MGS-D30

GEAR, COUNTER FIRST (45T)

Price €337.60
#5 23431-MGS-D30

GEAR, MAINSHAFT SECOND (19T)

Price €147.32
#6 23441-MGS-D30

GEAR, COUNTERSHAFT SECOND (36T)

Price €272.90
#7 23442-MM4-000

COLLAR, 28MM

Price €28.37
#8 23451-MGS-D30

GEAR, MAINSHAFT THIRD &amp FOURTH (22T/25T)

Price €322.46
#9 23461-MGS-D30

GEAR, COUNTERSHAFT THIRD (32T)

Price €187.25
#10 23481-MGS-D30

GEAR, COUNTER FOURTH (30T)

Price €171.40
#11 23482-MV9-670

COLLAR, SPLINE, 28X31X9

Price €26.81
#12 23491-MGS-D30

GEAR, MAINSHAFT FIFTH (30T)

Price €187.25
#13 23492-MGS-D30

COLLAR, 25X28X19

Price €25.34
#14 23501-MGS-D30

GEAR, COUNTERSHAFT FIFTH (31T)

Price €318.62
#15 23511-MGS-D30

GEAR, MAINSHAFT SIXTH (37T)

Price €209.02
#16 23512-MV9-670

COLLAR, SPLINE, 25X28X13

Price €32.23
#17 23521-MGS-D30

GEAR, COUNTERSHAFT SIXTH (31T)

Price €280.58
#18 23801-MJL-D30

SPROCKET, DRIVE (17T)

Price €120.43
#19 24261-283-000

PIN, GEARSHIFT FORK GUIDE

Price €10.96
#20 90037-422-003 i

BOLT, SPECIAL, 10MM

Price €11.96
#21 90402-MEW-920

WASHER, THRUST, 24X32X15

Price €8.00
#22 90451-704-000

WASHER A, THRUST, 20MM

Price €2.94
#23 90451-KY2-000

WASHER, SPLINE, 25X31X15

Price €7.48
#24 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €7.61
#25 90456-MA6-000

WASHER, THRUST, 25MM

Price €7.61
#26 90459-438-000 i

WASHER, 102MM

Price €11.20
#27 90461-MW0-000

WASHER, SPLINE, 25MM

Price €7.07
#28 90462-MBW-000

WASHER, LOCK, 25MM

Price €12.31
#29 90463-MR7-000

WASHER, SPLINE, 28MM

Price €14.40
#30 90464-MR7-000

WASHER, LOCK, 28MM

Price €14.40
#31 90469-ME5-000

WASHER, THRUST, 20X09

Price €7.20
#32 90601-107-000

CIRCLIP, 25MM

Price €7.91
#33 90603-MN4-000 i

CIRCLIP, 28MM

Price €7.63
#34 91001-MGS-D31

BEARING, RADIAL BALL, 31X68X15

Price €45.60
#35 91006-MGS-D31

BEARING, RADIAL BALL, 6204U

Price €38.11
#36 91022-KT7-003 i

BEARING, NEEDLE, 20MM (NTN)

Price €81.48
#37 91026-MEL-003 i

BEARING, NEEDLE, 24X28X10

Price €32.00
#38 91207-KT8-003

OIL SEAL, 34X62X8

Price €13.81
#39 94560-62200

RING, SNAP, 62MM

Price €3.19
#40 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
# 06112-MJL-A30 i

GASKET KIT B

Price €146.93
# 11522-MJL-D30 i

GASKET, CHANGE SWITCH

Price €13.42
# 15154-MAT-000

PACKING, OIL STRAINER

Price €11.04
# 90442-028-000

WASHER, SEALING, 8MM

Price €5.71
# 90443-MJ6-000

WASHER, NEUTRAL

Price €5.02
# 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
# 90488-425-000 i

WASHER, SEALING, 6MM

Price €7.07
# 90545-KF0-000

WASHER, 12MM

Price €6.54
# 91301-MEE-003

O-RING, 32X17

Price €5.82
# 91303-377-000 i

O-RING, 138X25

Price €9.58
# 91303-KF0-003 i

O-RING, 148X24 (ARAI)

Price €6.06
# 91307-035-000 i

O-RING, 18X3

Price €1.44
# 91307-PY4-003 i

O-RING, 245X19

Price €4.72
# 91309-425-003 i

O-RING, 244X31 (ARAI)

Price €12.66
# 91310-MGE-D01

O-RING, 165X25

Price €14.00
# 91313-393-003 i

O-RING, 78X22 (ARAI)

Price €5.18
# 91344-PC9-004 i

O-RING, 29X24 (NOK)

Price €5.98
# 94109-12000 i

WASHER, DRAIN PLUG, 12MM

Price €1.78
