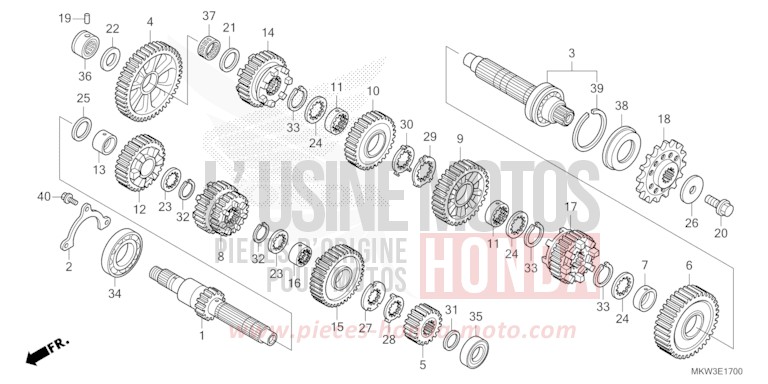

TRANSMISSION (NC750XA) for NC750X MAT JEANS BLUE MATALLIC (PB417) from 2023

TRANSMISSION (NC750XA) for NC750X MAT JEANS BLUE MATALLIC (PB417) from 2023
Reference
Product name
#1 23211-MKW-D00

MAINSHAFT (15T)

Price €249.78
#2 23212-MGS-D30

PLATE, MAINSHAFT BEARING SETTING

Price €9.74
#3 23220-MKW-D00

COUNTERSHAFT COMP

Price €245.50
#4 23421-MKW-D00

GEAR, COUNTERSHAFT FIRST (40T)

Price €187.21
#5 23431-MKW-D00

GEAR, MAINSHAFT SECOND (21T)

Price €118.80
#6 23441-MKW-D00

GEAR, COUNTERSHAFT SECOND (40T)

Price €187.21
#7 23442-MM4-000

COLLAR, 28MM

Price €23.38
#8 23451-MKW-D00

GEAR, MAINSHAFT THIRD &amp FOURTH (22T/28T)

Price €197.30
#9 23461-MKW-D00

GEAR, COUNTERSHAFT THIRD (32T)

Price €169.96
#10 23481-MKW-D00

GEAR, COUNTERSHAFT FOURTH (33T)

Price €169.96
#11 23482-MV9-670

COLLAR, SPLINE, 28X31X9

Price €29.82
#12 23491-MKW-D00

GEAR, MAINSHAFT FIFTH (31T)

Price €184.58
#13 23492-MGS-D30

COLLAR, 25X28X19

Price €16.73
#14 23501-MKW-D00

GEAR, COUNTERSHAFT FIFTH (30T)

Price €186.05
#15 23511-MKW-D00

GEAR, MAINSHAFT SIXTH (38T)

Price €182.93
#16 23512-MV9-670

COLLAR, SPLINE, 25X28X13

Price €38.28
#17 23521-MKW-D00

GEAR, COUNTERSHAFT SIXTH (31T)

Price €186.05
#18 23801-MKW-D00

SPROCKET, DRIVE (16T)

Price €83.70
#19 24261-283-000

PIN, GEARSHIFT FORK GUIDE

Price €7.90
#20 90037-422-003

BOLT, SPECIAL, 10MM

Price €10.03
#21 90402-MEW-920

WASHER, THRUST, 24X32X15

Price €8.70
#22 90451-704-000

WASHER A, THRUST, 20MM

Price €2.88
#23 90451-KY2-000

WASHER, SPLINE, 25X31X15

Price €5.34
#24 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €5.57
#25 90456-MA6-000

WASHER, THRUST, 25MM

Price €3.02
#26 90459-438-000

WASHER, 102MM

Price €7.37
#27 90461-MW0-000

WASHER, SPLINE, 25MM

Price €4.03
#28 90462-MBW-000

WASHER, LOCK, 25MM

Price €7.39
#29 90463-MR7-000

WASHER, SPLINE, 28MM

Price €10.72
#30 90464-MR7-000

WASHER, LOCK, 28MM

Price €10.57
#31 90469-ME5-000

WASHER, THRUST, 20X09

Price €4.06
#32 90601-107-000

CIRCLIP, 25MM

Price €5.35
#33 90603-MN4-000

CIRCLIP, 28MM

Price €7.90
#34 91001-MGS-D31

BEARING, RADIAL BALL, 31X68X15

Price €37.90
#35 91006-MGS-D31

BEARING, RADIAL BALL, 6204U

Price €37.90
#36 91022-MJE-DB1

BEARING, NEEDLE, 20MM (NTN)

Price €53.16
#37 91026-MEL-003

BEARING, NEEDLE, 24X28X10

Price €30.88
#38 91207-KT8-003

OIL SEAL, 34X62X8

Price €15.18
#39 94560-62200

RING, SNAP, 62MM

Price €3.13
#40 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#22 90451-MKW-D00

WASHER, THRUST, 20X35X15
