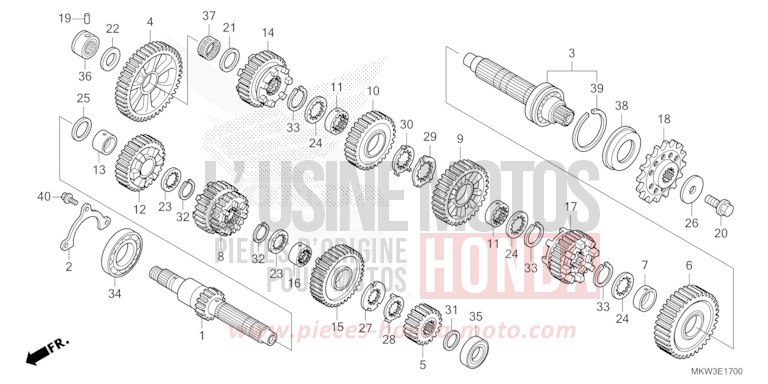

TRANSMISSION (NC750XA) for NC750X CANDY CHROMOSPHERE RED (R381) from 2023

TRANSMISSION (NC750XA) for NC750X CANDY CHROMOSPHERE RED (R381) from 2023
Reference
Product name
#1 23211-MKW-D00

MAINSHAFT (15T)

Price €488.12
#2 23212-MGS-D30

PLATE, MAINSHAFT BEARING SETTING

Price €10.57
#3 23220-MKW-D00

COUNTERSHAFT COMP

Price €480.52
#4 23421-MKW-D00

GEAR, COUNTERSHAFT FIRST (40T)

Price €228.55
#5 23431-MKW-D00

GEAR, MAINSHAFT SECOND (21T)

Price €122.44
#6 23441-MKW-D00

GEAR, COUNTERSHAFT SECOND (40T)

Price €228.55
#7 23442-MM4-000

COLLAR, 28MM

Price €28.37
#8 23451-MKW-D00

GEAR, MAINSHAFT THIRD &amp FOURTH (22T/28T)

Price €254.63
#9 23461-MKW-D00

GEAR, COUNTERSHAFT THIRD (32T)

Price €209.23
#10 23481-MKW-D00

GEAR, COUNTERSHAFT FOURTH (33T)

Price €209.23
#11 23482-MV9-670

COLLAR, SPLINE, 28X31X9

Price €26.81
#12 23491-MKW-D00

GEAR, MAINSHAFT FIFTH (31T)

Price €225.55
#13 23492-MGS-D30

COLLAR, 25X28X19

Price €25.34
#14 23501-MKW-D00

GEAR, COUNTERSHAFT FIFTH (30T)

Price €235.18
#15 23511-MKW-D00

GEAR, MAINSHAFT SIXTH (38T)

Price €223.74
#16 23512-MV9-670

COLLAR, SPLINE, 25X28X13

Price €32.23
#17 23521-MKW-D00

GEAR, COUNTERSHAFT SIXTH (31T)

Price €235.18
#18 23801-MKW-D00

SPROCKET, DRIVE (16T)

Price €113.74
#19 24261-283-000

PIN, GEARSHIFT FORK GUIDE

Price €10.96
#20 90037-422-003 i

BOLT, SPECIAL, 10MM

Price €11.96
#21 90402-MEW-920

WASHER, THRUST, 24X32X15

Price €8.00
#22 90451-704-000

WASHER A, THRUST, 20MM

Price €2.94
#23 90451-KY2-000

WASHER, SPLINE, 25X31X15

Price €7.48
#24 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €7.61
#25 90456-MA6-000

WASHER, THRUST, 25MM

Price €7.61
#26 90459-438-000 i

WASHER, 102MM

Price €11.20
#27 90461-MW0-000

WASHER, SPLINE, 25MM

Price €7.07
#28 90462-MBW-000

WASHER, LOCK, 25MM

Price €12.31
#29 90463-MR7-000

WASHER, SPLINE, 28MM

Price €14.40
#30 90464-MR7-000

WASHER, LOCK, 28MM

Price €14.40
#31 90469-ME5-000

WASHER, THRUST, 20X09

Price €7.20
#32 90601-107-000

CIRCLIP, 25MM

Price €7.91
#33 90603-MN4-000 i

CIRCLIP, 28MM

Price €7.63
#34 91001-MGS-D31

BEARING, RADIAL BALL, 31X68X15

Price €45.60
#35 91006-MGS-D31

BEARING, RADIAL BALL, 6204U

Price €38.11
#36 91022-MJE-DB1 i

BEARING, NEEDLE, 20MM (NTN)

Price €81.48
#37 91026-MEL-003 i

BEARING, NEEDLE, 24X28X10

Price €32.00
#38 91207-KT8-003

OIL SEAL, 34X62X8

Price €13.81
#39 94560-62200

RING, SNAP, 62MM

Price €3.19
#40 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
#22 90451-MKW-D00

WASHER, THRUST, 20X35X15

Price €8.92
