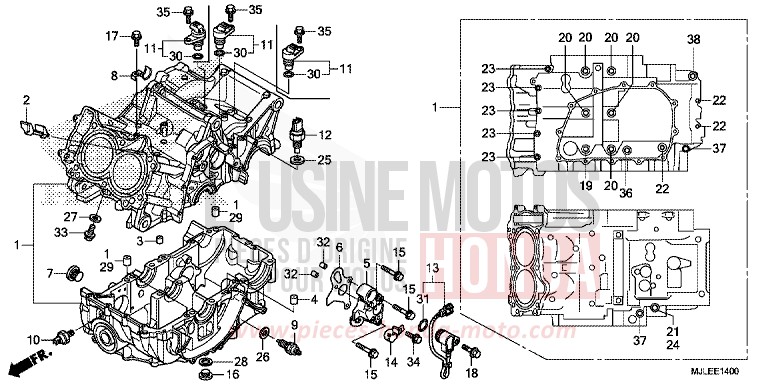

CRANKCASE for NC750SA CANDY ARCADIAN RED (R305) from 2014

CRANKCASE for NC750SA CANDY ARCADIAN RED (R305) from 2014
Reference
Product name
# 22100-MGS-D30

OUTER COMP, CLUTCH (71T)

Price €646.24
# 22116-MGS-D30

GUIDE, CLUTCH OUTER

Price €90.54
# 22120-MBA-000

CENTER, CLUTCH (24T)

Price €108.71
# 22125-MJL-D30

SEAT, JUDDER SPRING

Price €17.57
# 22201-MAV-000 i

DISK, CLUTCH FRICTION

Price €16.46
# 22201-MEW-920

DISK, CLUTCH FRICTION

Price €20.93
# 22202-MAE-000 i

DISK B, CLUTCH FRICTION

Price €16.50
# 22321-MJH-Y00

PLATE, CLUTCH

Price €17.40
# 22350-MS6-922 i

PLATE, CLUTCH PRESSURE

Price €82.12
# 22361-MR1-000 i

PLATE, CLUTCH LIFTER

Price €26.99
# 22366-MFF-D00

ROD, CLUTCH CENTER

Price €34.75
# 22401-MJL-D30

SPRING, CLUTCH

Price €8.74
# 22402-MJL-D30 i

SPRING, JUDDER

Price €62.16
# 22847-MFF-D00

ROD, CLUTCH LIFTER

Price €12.66
# 23103-MGS-D30

GEAR, PRIMARY DRIVE (41T)

Price €227.87
# 30291-MGS-D30

ROTOR, PULSE

Price €15.62
# 90007-MJH-Y01 i

BOLT, FLANGE, 6X35

Price €6.94
# 90023-MBW-000

BOLT, FLANGE, 10MM

Price €14.63
# 90236-HA0-000

NUT, LOCK, 18MM

Price €15.83
# 90401-MZ8-B40

WASHER, 18MM

Price €5.71
# 90414-MGE-D00

WASHER, 105X36X4

Price €13.06
# 90432-428-000

WASHER, LOCK

Price €13.91
# 90452-471-000

WASHER, THRUST, 22MM

Price €11.33
# 96100-6001000 i

BEARING, RADIAL BALL, 6001

Price €15.59
#1 11000-MJL-D30 i

CRANKCASE SET

Price €3,953.59
#1 11000-MJL-D31 i

CRANKCASE SET

Price €3,953.59
#2 11103-MGS-D31

PLATE, PARTITION

Price €16.91
#3 11207-MFL-000

ORIFICE, 11MM

Price €10.28
#4 11207-MGS-D30

ORIFICE, 15MM

Price €11.54
#5 11521-MJL-D30

HOLDER, ANGLE SENSOR

Price €101.52
#6 11522-MJL-D30 i

GASKET, CHANGE SWITCH

Price €13.42
#7 12208-PR3-000

BOLT, SEALING, 20MM

Price €8.06
#8 17640-MGS-D30

STAY, FUEL HOSE

Price €18.12
#9 35600-MFJ-D01 i

SWITCH ASSY, NEUTRAL

Price €47.11
#10 37241-RNA-A01

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €72.98
#11 37700-MGS-D31

SENSOR ASSY, SPEED

Price €338.92
#13 38800-MJL-D11

SENSOR ASSY, ANGLE (350DEGREE)

Price €456.44
#14 38815-MJL-D10

STAY, ANGLE SENSOR CORD

Price €11.89
#15 90001-MGS-D20

BOLT, FLANGE, 6X28

Price €5.96
#16 90002-RGA-000

BOLT, SEALING, 12X8

Price €8.06
#17 90004-MGS-D30

BOLT, FLANGE, 6X16

Price €2.83
#18 90011-MGE-D00

BOLT, KNOCK, 6MM

Price €8.03
#19 90015-MGS-D31

BOLT, FLANGE, 9X150

Price €31.06
#20 90016-MFA-D01 i

BOLT, FLANGE, 9X125

Price €13.63
#21 90021-MGS-D30

BOLT, FLANGE, 8X100

Price €9.67
#22 90021-MJL-D30

BOLT, SPECIAL, 6X45

Price €8.96
#23 90022-MJL-D30

BOLT, SPECIAL, 6X32

Price €7.31
#24 90442-028-000

WASHER, SEALING, 8MM

Price €5.71
#26 90443-MJ6-000

WASHER, NEUTRAL

Price €5.02
#27 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#28 90545-KF0-000

WASHER, 12MM

Price €6.54
#29 90701-MV9-670

DOWEL PIN, 10X16

Price €7.63
#30 91303-KF0-003 i

O-RING, 148X24 (ARAI)

Price €6.06
#31 91310-MGE-D01

O-RING, 165X25

Price €14.00
#32 94301-08100 i

DOWEL PIN, 8X10

Price €1.81
#33 95701-0601200 i

BOLT, FLANGE, 6X12

Price €1.15
#34 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
#35 95701-0601800 i

BOLT, FLANGE, 6X18

Price €1.15
#36 95701-0804500 i

BOLT, FLANGE, 8X45

Price €1.74
#37 95701-0807000 i

BOLT, FLANGE, 8X70

Price €2.05
#38 95701-1007000 i

BOLT, FLANGE, 10X70

Price €2.66
