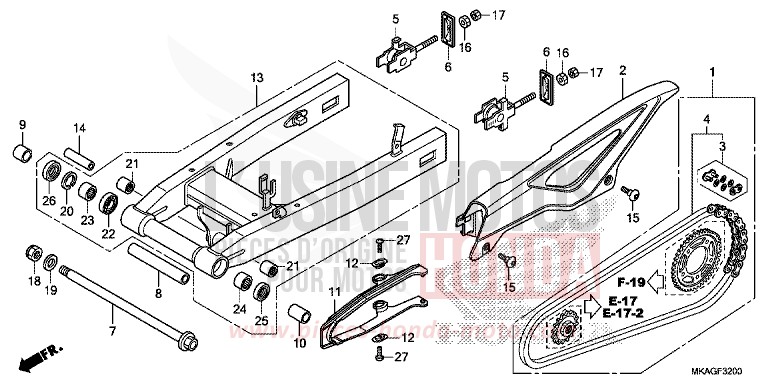

SWINGARM for NC750S GRAPHITE BLACK (NHB01K) from 2017

SWINGARM for NC750S GRAPHITE BLACK (NHB01K) from 2017
Reference
Product name
# 18150-MKA-D81 i

PIPE COMP, EX

Price €1,557.01
# 18291-MGS-D31

GASKET OF PIPE D'ECHAPPEMENT

Price €14.08
# 18293-MCA-A20

RUBBER OF GASKET OF PROTECTOR

Price €8.24
# 18310-MKA-D81 i

MUFFLER COMP

Price €979.84
# 18342-MKA-D81

COVER, MUFFLER

Price €150.83
# 18345-MBT-610

PROTECTOR MOUNT RUBBER

Price €5.89
# 18373-413-000 i

STRIPE OF POT EXHAUST FRONT R.

Price €46.44
# 18392-MK4-000 i

GASKET OF POT EXHAUST

Price €17.09
# 18422-MFJ-D10

MOUNT RUBBER OF PIPE EXHAUST

Price €54.37
# 18423-MGS-D30

RING, MONTURE OF PIPE D' ECHAPPEMENT

Price €14.90
# 32200-MGS-D30

HARNESS SECONDAIRE, MASSE CAPTEUR OXYGENE

Price €19.20
# 36532-MJH-Y21

SENSOR, OXYGEN

Price €490.66
# 36533-MJH-Y21

CORD COMP, OXYGEN SENSOR

Price €114.80
# 50607-KK6-000

COULLIER OF RUBBER OF NONTAGE

Price €12.07
# 50608-KV0-000

RUBBER OF FIXING OF POT EXHAUST

Price €12.78
# 90103-KCM-620

FLANGE BOLT, 8X35

Price €4.82
# 90113-GFP-B00

CYLINDRICAL HEAD SCREW, 6X12

Price €7.08
# 90304-ME1-670

HUTNUT, 8MM

Price €11.04
# 90501-819-000

WASHER, 8MM

Price €1.49
# 90534-MV4-000

WASHER, 8.5X28

Price €5.99
# 94050-08080 i

FLANGE NUT, 8MM

Price €1.50
# 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
# 95701-0601407 i

FLANGE BOLT, 6X14

Price €1.15
# 96300-0804504

FLANGE BOLT, 8X45

Price €2.86
# 96300-0805004

FLANGE BOLT, 8X50

Price €2.78
#1 06406-MKA-D50

CHAIN KIT, DRIVE (520-17&amp39T) (STANDARD LINK...

Price €271.42
#2 40510-MGS-D30

CASE OF CHAINE OF COMMANDE

Price €185.23
#3 40531-MJF-A02

GASKET OF CHAINE OF COMMANDE (RK JAPAN)

Price €30.20
#3 40545-MGS-D31

GASKET OF CHAINE OF CONTROL (DAIDO)

Price €30.70
#4 40540-MGS-D31

CHAINE OF CONTROL (DAIDO) (DID520V0-120ZB)

Price €414.10
#4 40540-MJF-A02 i

CHAINE OF COMMANDE (RK JAPAN) (RK520KHO-120LJFZ)

Price €406.68
#5 40543-MGS-D30

ADJUSTER, CHAIN

Price €66.98
#6 40546-MGS-D30

CAP, SWINGARM END

Price €45.88
#7 52101-MGS-D30

BOLT, PIVOT DE BRAS OSCILLANT

Price €82.49
#8 52141-MGS-D10

RING, ENTRETOISE OF PIVOT

Price €54.13
#9 52142-MGS-D10

COLLET, DISTANCE OF CENTRE OF ROTATION, R.

Price €31.19
#10 52143-MGS-D10

COLLET, DISTANCE OF CENTRE OF ROTATION, L.

Price €33.53
#11 52170-MGS-D30

SLIDER, CHAIN

Price €16.03
#12 52171-KR6-000 i

WASHER OF CONLISSEAU OF CHAIN

Price €6.13
#13 52200-MGS-D71 i

SWINGARM SUB ASSY, RR

Price €2,003.92
#14 52463-MGS-D10

BAND B OF ARM D'AMORTESSEUR

Price €34.97
#15 90118-MJK-N20

SPECIAL SCREW, 6X14

Price €8.32
#16 90302-MBZ-G00

NUT HEX., 8MM

Price €2.40
#17 90303-MBZ-G00

NUT HEX., 8MM

Price €2.24
#18 90306-MCS-G01

NUT U, 18MM

Price €20.44
#19 90401-MAS-000

WASHER, 20X31.5X2

Price €6.26
#20 90651-MEW-920

CIRCLIP INNER (37)

Price €8.86
#21 91052-MGS-D31

NEEDLE BEARING, 17X24X30

Price €28.99
#22 91054-MGS-D31

RADIAL BALL BEARING, 20X37X9

Price €23.71
#23 91055-MGS-D31

NEEDLE BEARING, 30X37X20

Price €50.26
#24 91071-MR7-003

NEEDLE BEARING

Price €28.46
#25 91202-MR7-003 i

COVER-POUSSIERE, 28X37X4

Price €8.05
#26 91253-KZ3-861

COVER-POUSSIERE, 30X37X4

Price €10.49
#27 93901-25280

SELF-TAPPING SCREW, 5X12

Price €0.78
