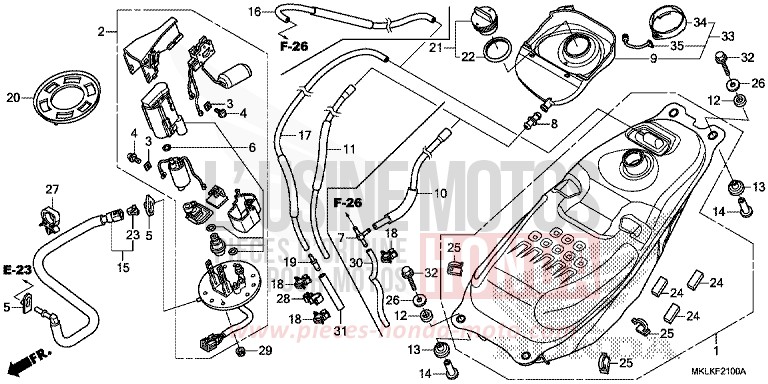

FUEL TANK/FUEL PUMP for NC750S CANDY CHROMOSPHERE RED (R381) from 2019

FUEL TANK/FUEL PUMP for NC750S CANDY CHROMOSPHERE RED (R381) from 2019
Reference
Product name
#1 04801-MGS-T51ZE

TANK ASSY, FUEL NHA86M (NHA86M MAT BALLISTIC...

Price €1,040.42
#2 16700-MKA-D82

PUMP ASSY, FUEL

Price €763.50
#3 16711-MGS-D31

STOPPER

Price €10.08
#4 16712-MGS-D31

SCREW, 4X66

Price €6.79
#5 16719-MEW-920

DAMPER, CONNECTOR

Price €9.10
#6 16730-MKA-D82

FILTER ASSY, FUEL

Price €78.19
#7 16960-ME9-000

PIPE, THREE WAY JOINT

Price €20.98
#8 17359-419-670

JOINT, BREATHER TUBE

Price €4.37
#9 17507-MGS-D30

TRAY, FUEL TANK

Price €47.40
#10 17508-MGS-T50

TUBE A, DRAIN

Price €22.57
#12 17516-MGS-D30

RUBBER, FUEL TANK UPPER MOUNTING

Price €6.64
#13 17517-MGS-D30

RUBBER, FUEL TANK LOWER MOUNTING

Price €9.37
#14 17518-MGS-D30

COLLAR, FUEL TANK

Price €8.36
#15 17526-MGS-D31

HOSE COMP, FUEL FEED

Price €183.55
#16 17530-MGS-T50

TUBE, SEPARATOR BREATHER

Price €31.31
#20 17574-MGS-D30

PACKING, BASE

Price €32.47
#21 17620-KFR-840

CAP COMP, FUEL FILLER

Price €64.08
#21 17620-KFR-841

CAP COMP, FUEL FILLER

Price €64.08
#22 17632-383-831

PACKING, FUEL FILLER CAP

Price €13.18
#22 17632-383-832

PACKING, FUEL FILLER CAP

Price €13.18
#23 17711-MGE-003

RETAINER

Price €11.36
#24 80129-MEG-000

RUBBER, RR FRAME

Price €3.42
#25 83705-MZ7-300

CLIP, HARNESS

Price €9.38
#26 90404-680-000

WASHER, 65X25X15

Price €4.78
#29 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#30 95005-4534020

TUBE, 45X340 (95005-45001-20M)

Price €8.88
#32 95701-0604008

BOLT, FLANGE, 6X40

Price €1.32
