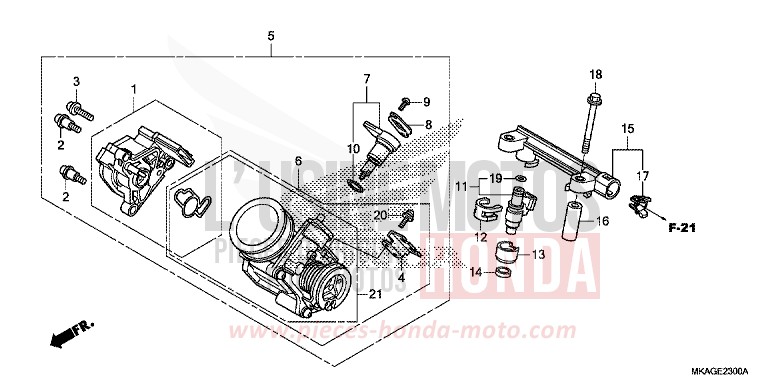

THROTTLE BODY for NC750S CANDY CHROMOSPHERE RED (R381) from 2018

THROTTLE BODY for NC750S CANDY CHROMOSPHERE RED (R381) from 2018
Reference
Product name
#1 16060-MKH-D01

SENSOR SET

Price €297.53
#2 16081-KYJ-901

SCREW, TORX, 5X87

Price €6.00
#3 16082-KYJ-901

SCREW, TORX, 5X17

Price €5.15
#5 16400-MKH-D41

BODY ASSY, THROTTLE (GQ3DH A)

Price €284.74
#7 16430-MGS-D31

VALVE SET, IDLE AIR CONTROL

Price €299.02
#8 16432-MFE-641

PLATE, IDLE AIR CONTROL VALVE

Price €15.30
#9 16433-HN8-A61

SCREW, TORX

Price €6.42
#10 16435-HN8-A61

O-RING, 178X19

Price €19.78
#11 16450-MFA-D02

INJECTOR ASSY, FUEL

Price €305.30
#12 16451-MFL-000

CLIP, INJECTOR

Price €9.60
#13 16459-MGS-D30

COVER, INJECTOR

Price €7.52
#14 16472-MGS-D30

SEAL RING, INJECTOR

Price €8.22
#15 16640-MGS-D31

PIPE COMP, FUEL

Price €72.28
#16 16647-MGS-D30

COLLAR, FUEL PIPE

Price €10.06
#17 17711-MGE-003

RETAINER

Price €11.36
#18 90005-MGS-D30

BOLT, FLANGE, 6X55

Price €7.55
#19 91301-P7A-004

O-RING, 78X19

Price €5.71
#21 16410-MKH-D41

BODY SET

Price €373.28
