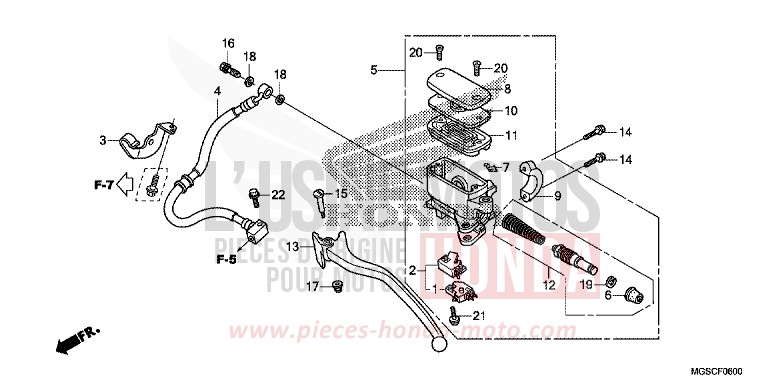

RR. BRAKE MASTER CYLINDER for NC700D CANDY GRACEFUL RED-U (R151) from 2012

RR. BRAKE MASTER CYLINDER for NC700D CANDY GRACEFUL RED-U (R151) from 2012
Reference
Product name
#1 35340-MGS-D31

SWITCH ASSY, FR STOP (ALPS)

Price €52.01
#2 35341-MGS-D71

SWITCH COMP, RR STOP

Price €56.60
#3 43155-MGS-D70

CLAMPER A, RR BRAKE HOSE

Price €24.31
#4 43310-MGS-D71

HOSE COMP A, RR BRAKE

Price €158.21
#5 43510-MGS-D71

CYLINDER SUB ASSY, RR MASTER (NISSIN)

Price €464.21
#6 45504-410-003 i

BOOT COMP

Price €17.71
#7 45512-MA6-006

PROTECTOR

Price €7.12
#8 45513-MM5-016 i

CAP, MASTER CYLINDER (NISSIN)

Price €55.90
#9 45517-166-006 i

HOLDER, MASTER CYLINDER

Price €28.03
#10 45518-MM5-006 i

PLATE, DIAPHRAGM

Price €19.50
#11 45520-MM5-006 i

DIAPHRAGM

Price €29.24
#12 45530-471-831 i

CYLINDER SET, MASTER

Price €81.41
#13 53178-MCT-006 i

LEVER COMP, L HANDLE

Price €36.00
#14 90101-MBZ-G00

BOLT, FLANGE, 6X22

Price €5.21
#15 90114-MA5-671 i

BOLT, HANDLE LEVER PIVOT

Price €13.19
#16 90145-MS9-612 i

BOLT, OIL, 10X22 (SAGA)

Price €16.85
#17 90201-415-000

NUT, CAP, 6MM

Price €7.06
#18 90545-300-000 i

WASHER, OIL BOLT

Price €5.30
#19 90651-MA5-671 i

CIRCLIP

Price €7.63
#20 93600-040121G i

SCREW, FLAT, 4X12

Price €0.77
#21 93893-0401617 i

SCREW-WASHER, 4X16

Price €0.96
#22 96001-0601207 i

BOLT, FLANGE, 6X12

Price €1.25
