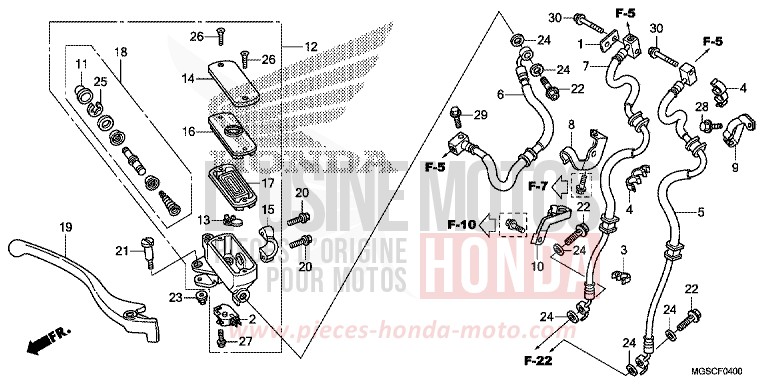

FR. BRAKE MASTER CYLINDER for NC700D CANDY GRACEFUL RED-U (R151) from 2012

FR. BRAKE MASTER CYLINDER for NC700D CANDY GRACEFUL RED-U (R151) from 2012
Reference
Product name
#1 32157-MGS-D70

STAY, HARNESS CLIP

Price €5.68
Contact us
#2 35340-MGS-D31

ASSY. SWITCH STOP FRONT

Price €52.01
#3 38516-MGE-003

FLANGE, CORDON ABS (D8.5)

Price €11.08
#4 38516-MGS-D81

CLAMP, ABS CORD (D12)

Price €8.59
#5 43322-MGS-D71

HOSE COMP C, SUB BRAKE

Price €140.45
#6 45125-MGS-D71

HOSE COMP A, FR BRAKE

Price €141.47
#7 45128-MGS-D71

HOSE COMP D, FR BRAKE

Price €150.06
Contact us
#8 45155-MGS-D70

CLAMPER A, FR BRAKE HOSE

Price €24.31
#9 45156-MGS-D70

CLAMPER B, FR BRAKE HOSE

Contact us
#10 45157-MGS-D70

CLAMPER C, FR BRAKE HOSE

Contact us
#11 45504-410-003 i

BOOT COMP.

Price €17.71
#12 45510-MGS-D31 i

CYLINDER SUB ASSY, FR MASTER (NISSIN)

Price €454.20
#13 45512-MA6-006

PROTECTOR

Price €7.12
#14 45513-MM5-016 i

CAP OF MASTER CYLINDER (NISSIN)

Price €55.90
#15 45517-166-006 i

SUPPORT OF MASTER CYLINDER

Price €28.03
#16 45518-MM5-006 i

PLATE OF DIAPHRAGME

Price €19.50
#17 45520-MM5-006 i

DIAPHRAGME

Price €29.24
#18 45530-KVY-911

CYLINDER SET, MASTER (NISSIN)

Price €28.50
#19 53175-ML5-006 i

LEVER COMP, R HANDLE

Price €38.81
#20 90101-MBZ-G00

FLANGE BOLT, 6X22

Price €5.21
#21 90114-MA5-671 i

BOLT OF PIVOT OF LEVER HANDLE

Price €13.19
#22 90145-MS9-612 i

BOLT OIL, 10X22 (SAGA)

Price €16.85
#23 90201-415-000

NUT OF CAP, 6MM

Price €7.06
#24 90545-300-000 i

WASHER OF BOLT OIL

Price €5.30
#25 90651-MA5-671 i

CIRCLIP

Price €7.63
#26 93600-040121G i

SCREW A HEAD PLATE, 4X12

Price €0.77
#27 93893-0401217 i

SCREW A HEAD A WASHER, 4X12

Price €1.08
#28 96001-0601200 i

FLANGE BOLT, 6X12

Price €1.25
#29 96001-0601207 i

FLANGE BOLT, 6X12

Price €1.25
#30 96001-0602807 i

FLANGE BOLT, 6X28

Price €1.50
