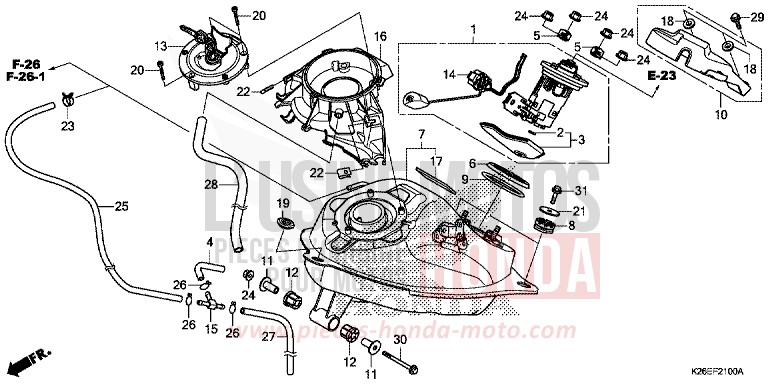

FUEL TANK for MSX125A PEARL VALENTINE RED (R353) from 2017

FUEL TANK for MSX125A PEARL VALENTINE RED (R353) from 2017
Reference
Product name
#1 16700-K26-B01

PUMP ASSY, FUEL

Price €483.54
#2 16706-K81-N01 i

O-RING (P7)

Price €3.46
#2 16706-KVB-S51 i

O-RING (P7)

Price €3.46
#3 16707-KZV-T01

FILTER SET

Price €23.24
#4 17412-K26-B00

TUBE, AIR

Price €5.71
#5 17517-GGL-J00

BRACKET, FUELPUMPE

Price €5.21
#6 17518-GHB-601

SEAL, DUST (OHTUKA POLY-TECH)

Price €12.46
#7 17520-K26-B01

TANK SET, FUEL

Price €374.40
#8 17531-K26-B00

RUBBER, TANK

Price €1.94
#9 17572-GHB-601

O-RING, PUMP A FUEL (ARAI)

Price €20.76
#10 17575-K26-B00

COVER, FUEL PUMP

Price €9.40
#11 17614-K26-900

COLLAR, FUEL TANK

Price €3.58
#12 17615-K26-900

CUSHION, FUEL TANK RR PIVOT

Price €3.42
#13 17620-K26-B01 i

CAP COMP, FUEL FILLER

Price €174.44
#14 37800-K26-B01

FUEL UNIT

Price €44.24
#15 38581-K26-B00

JOINT, TUBE (T)

Price €3.36
#16 64460-K26-B00

COVER COMP, TANK CAP

Price €11.20
#17 81257-K26-B00

RUBBER, PROTECTOR

Price €4.50
#18 81312-KPH-900

BAND OF FENDER FRONT

Price €3.28
#19 83551-300-000 i

AIR FILTER HOUSING RING

Price €10.69
#20 90120-MJE-D00

BOLT OF SOCKET, 4X25 (INOX)

Price €2.98
#21 90136-428-870

WASHER OF FIXING OF TANK

Price €6.13
#22 90302-KWW-A00

SPRING NUT, 4MM

Price €3.16
#23 90652-KSJ-A21

PIPE CLIP (8.0)

Price €6.23
#24 94050-06000 i

FLANGE NUT, 6MM

Price €0.79
#25 17601-K26-C10

TUBE, 45X630

Price €9.35
#26 95002-02080 i

CLAMP, TUBE (B8)

Price €0.79
#27 95005-3553020

TUBE, 35X530 (95005-35001-10M)

Price €9.79
#28 17521-K26-C00

TUBE, DRAIN

Price €9.01
#29 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
#30 95701-0606000 i

FLANGE BOLT, 6X60

Price €1.66
#31 95801-0601400 i

FLANGE BOLT, 6X14

Price €1.15
