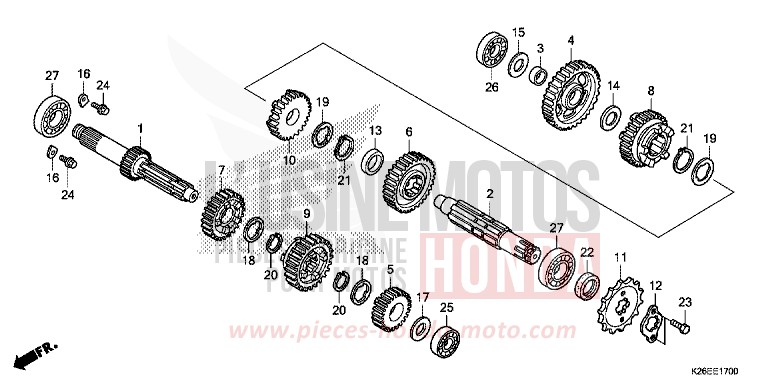

TRANSMISSION for MSX125 LEMON ICE YELLOW (Y196) from 2016

TRANSMISSION for MSX125 LEMON ICE YELLOW (Y196) from 2016
Reference
Product name
#1 23211-KPH-900 i

SHAFT PRINCIPAL (14T)

Price €24.10
#2 23221-KPH-900 i

SHAFT OF RENVOI

Price €38.95
#3 23415-KPH-900

RING, 15MM

Price €6.46
#4 23421-KPH-900

PINION PREMIERE D'SHAFT OF RENVOI (35T)

Price €27.10
#5 23431-KPH-700

GEAR, MAINSHAFT SECOND (20T)

Price €32.96
#6 23441-KPH-900

PINION DEUXIEME D'SHAFT OF RENVOI (31T)

Price €19.46
#7 23451-KPH-700

GEAR, MAINSHAFT THIRD (20T)

Price €34.88
#8 23461-KPH-900 i

PINION TROISIEME D'SHAFT OF RENVOI (23T)

Price €21.77
#9 23471-KPH-700 i

GEAR, MAINSHAFT FOURTH (26T)

Price €26.70
#10 23481-KPH-700 i

GEAR, COUNTERSHAFT FOURTH (24T)

Price €38.58
#11 23801-K26-900

SPROCKET, DRIVE (15T)

Price €31.88
#12 23802-GN5-910

PLATE OF FIXING

Price €8.24
#13 23911-KPG-T00

COLLAR, 51MM

Price €3.28
#14 90412-187-000 i

WASHER OF STOPPER, 15MM

Price €7.20
#15 90412-KPH-900

SPECIAL WASHER, 12X23

Price €3.28
#16 90441-KRM-840 i

PLATE DE PORTE-ROULEMENT

Price €0.98
#17 90452-KGH-900 i

SPECIAL WASHER, 12MM

Price €1.86
#18 90461-115-000

WASHER CANNELEE, 17MM

Price €7.20
#19 90461-GB4-770

WASHER CANNELEE, 20X12

Price €6.80
#20 90601-001-000

CIRCLIP EXTERIEUR, 17MM

Price €6.52
#21 90605-200-000 i

BAGUES OF SERRAGE, 20MM

Price €7.91
#22 91204-KPH-901

GASKET SEALING D'OIL, 17X30X5 (ARAI)

Price €1.92
#22 91204-KPH-902

OIL SEAL, 17X30X5 (NOK)

Price €1.92
#23 92101-060100A i

BOLT HEX., 6X10

Price €1.07
#24 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
#25 96100-6001000 i

RADIAL BALL BEARING, 6001

Price €15.59
#26 96100-6201000 i

ROULEMENT A BILLES RADIAL, 6201

Price €11.88
#27 96100-6203000 i

ROULEMENT A BILLES RADIAL, 6203

Price €16.33
