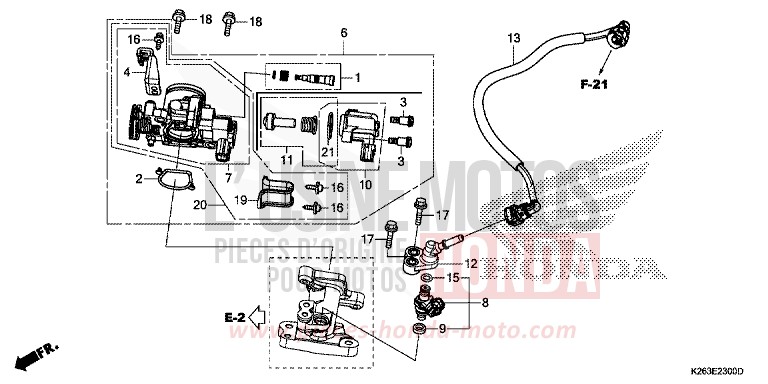

THROTTLE BODY for MSX125 ASTEROID BLACK METALLIC (NHA35) from 2014

THROTTLE BODY for MSX125 ASTEROID BLACK METALLIC (NHA35) from 2014
Reference
Product name
# 15431-K26-900

ROTOR, OIL FILTER

Price €117.10
# 15439-K26-901

GASKET, OIL FILTER COVER

Price €3.95
# 15441-K26-900

COVER, OIL FILTER

Price €8.11
# 15661-K26-900

PLATE COMP, OIL SEPARATOR

Price €9.55
# 22100-KPG-T00 i

OUTER COMP, CLUTCH

Price €225.26
# 22115-KPH-900

GUIDE, CLUTCH OUTER

Price €7.45
# 22116-KPG-T00

COLLAR, CLUTCH OUTER

Price €5.44
# 22120-KPG-T00

CENTER COMP, CLUTCH

Price €28.72
# 22201-KPG-T00

DISK, CLUTCH FRICTION

Price €17.40
# 22205-KPG-T00

DISK B, CLUTCH FRICTION

Price €17.40
# 22321-KE8-000

PLATE, CLUTCH

Price €17.40
# 22350-KPG-T00

PLATE, CLUTCH PRESSURE

Price €24.76
# 22361-KPG-T00

PLATE, CLUTCH LIFTER

Price €12.20
# 22401-KPH-900

SPRING, CLUTCH

Price €3.12
# 22847-K26-900

ROD, CLUTCH LIFTER

Price €9.01
# 90050-KPH-900

BOLT, SPECIAL FLANGE, 6X20

Price €3.97
# 90231-087-010 i

NUT, LOCK, 14MM

Price €8.76
# 90231-KM7-700 i

NUT, LOCK, 14MM

Price €7.32
# 90403-KPH-900 i

WASHER, THRUST, 17MM

Price €3.28
# 90432-KPT-A00 i

WASHER, 142X26X3

Price €6.80
# 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
# 95701-0601600 i

BOLT, FLANGE, 6X16

Price €1.18
# 96100-6200000 i

BEARING, RADIAL BALL, 6200

Price €12.66
#1 16016-KVB-S51

SCREW SET

Price €18.97
#2 16075-KYZ-711

O-RING

Price €7.39
#3 16081-KPH-701 i

SCREW, TORX, 5X87

Price €7.08
#4 16169-K26-901

STAY, WIRE

Price €27.79
#6 16400-K26-921

BODY ASSY, THROTTLE (GQY9A A)

Price €124.42
#7 16410-K26-921

BODY SET

Price €87.41
#8 16450-K25-901

INJECTOR ASSY, FUEL

Price €81.50
#9 16472-KPC-D50

RING, SEAL

Price €6.80
#10 16480-KVB-S51

SOLENOID

Price €73.50
#11 16485-KVB-S51

SEAT SET

Price €57.01
#12 17560-K26-900

JOINT COMP, INJECTOR

Price €50.76
#13 17570-K26-901

HOSE COMP, FUEL FEED

Price €34.88
#15 91301-GGL-J01

O-RING, 63X22

Price €21.91
#16 93892-0501218 i

SCREW-WASHER, 5X12

Price €1.34
#17 90001-K26-900

BOLT, FLANGE, 6X22

Price €10.70
#18 96001-0602000 i

BOLT, FLANGE, 6X20

Price €1.25
#21 16077-KVB-S51

O-RING, 19X204

Price €5.46
