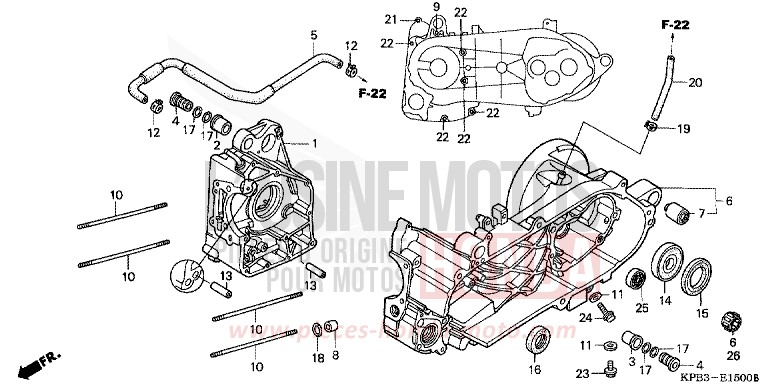

CRANKCASE for JAZZ PURE BLACK (NH237) from 2001

CRANKCASE for JAZZ PURE BLACK (NH237) from 2001
Reference
Product name
#11 90474-333-000

WASHER, SEALING, 8MM

Price €6.54
#23 95701-0801200 i

BOLT, FLANGE, 8X12

Price €1.25
#1 11100-KFG-J00

CRANKCASE COMP, R

Contact us
#2 11103-KJ9-750

BUSH, R OUTER ENGINE HANGER

Price €21.13
#3 11104-KJ9-751 i

BUSH, L OUTER ENGINE HANGER

Price €21.13
#4 11105-KAB-000

BUSH, INNER ENGINE HANGER

Price €25.02
#5 11150-KFG-000

TUBE ASSY, BREATHER

Price €46.46
#7 11203-KAB-000

BUSH, DAMPER

Price €14.75
#8 15326-KT7-000

COLLAR, OIL PATH, 18MM

Price €5.71
#9 90001-KFG-000

BOLT, FLANGE, 6X147

Contact us
#10 90031-KM1-010 i

BOLT A, STUD, 8MM

Price €11.74
#12 90682-SA0-671 i

CLAMP, CANISTER HOSE

Price €9.37
#13 90701-399-000

DOWEL PIN, 10X28

Price €11.46
#14 91006-KAB-004 i

BEARING, RADIAL BALL, 6205-2NSG (FUJIKOSHI)

Price €39.13
#15 91253-KM1-003 i

OIL SEAL, 34X52X5 (NOK)

Price €10.26
#16 91261-KM1-003 i

OIL SEAL, 279X40X8 (ARAI)

Price €11.62
#17 91304-MJ0-003 i

O-RING, 158X24 (SHOWA)

Price €4.84
#18 91306-KK4-003 i

O-RING, 18X26 (ARAI)

Price €7.45
#19 95002-4100008 i

CLAMP, TUBE (D10)

Price €1.66
#20 95005-5517020

TUBE, 53X170 (95005-55001-10M)

Contact us
#21 95701-0604000 i

BOLT, FLANGE, 6X40

Price €1.25
#22 95701-0607000 i

BOLT, FLANGE, 6X70

Price €1.96
#24 95701-0802500 i

BOLT, FLANGE, 8X25

Price €1.61
#25 96100-6302000 i

BEARING, RADIAL BALL, 6302

Price €18.04
#26 91105-KFG-003 i

BEARING, NEEDLE, 14X22X16

Price €22.20
#6 11200-KPB-000

CARTER MOTEUR COMP G

Contact us
