FR. BRAKE MASTER CYLINDER (NSS2501/2) 🏍️ JAZZ
REAR BRAKE PIPE (NSS2501/2) 🏍️ JAZZ

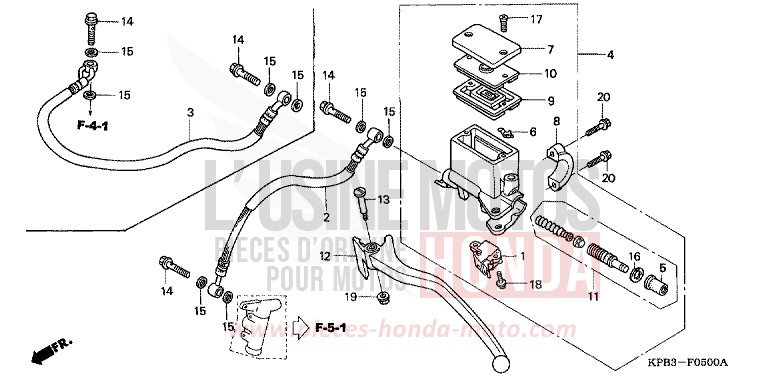

RR. BRAKE MASTER CYLINDER for JAZZ CANDY GLORY RED-U (R101) from 2001

RR. BRAKE MASTER CYLINDER for JAZZ CANDY GLORY RED-U (R101) from 2001
Reference
Product name
#19 94050-06000 i

NUT, FLANGE, 6MM

Price €0.79
#5 45504-410-003 i

BOOT COMP

Price €17.71
#7 45513-KK1-771 i

CAP, MASTER CYLINDER

Price €39.60
#8 45517-166-006 i

HOLDER, MASTER CYLINDER

Price €28.03
#9 45520-MG7-006 i

DIAPHRAGM

Price €19.44
#10 45521-HA2-006 i

PLATE, DIAPHRAGM

Price €18.22
#13 90114-KT7-006

BOLT, HANDLE LEVER

Price €14.75
#14 90145-MS9-612 i

BOLT, OIL, 10X22 (SAGA)

Price €16.85
#15 90545-300-000 i

WASHER, OIL BOLT

Price €5.30
#16 90651-MA5-671 i

CIRCLIP

Price €7.63
#17 93600-040121G i

SCREW, FLAT, 4X12

Price €0.77
#18 93893-0401217 i

SCREW-WASHER, 4X12

Price €1.08
#20 96001-0602207 i

BOLT, FLANGE, 6X22

Price €1.74
#1 35340-KFG-000 i

SWITCH ASSY, FR STOP

Price €78.28
#4 43510-KPB-641

CYLINDER SUB ASSY, RR BRAKE MASTER

Price €382.46
#6 45512-MA6-006

PROTECTOR

Price €7.12
#11 45530-MA4-671 i

CYLINDER SET, MASTER

Price €81.41
#2 43311-KPB-004

DURITE A DE FREIN AR

Contact us
#12 53178-KPB-006

LEVIER COMP GUIDON G

Price €18.10
