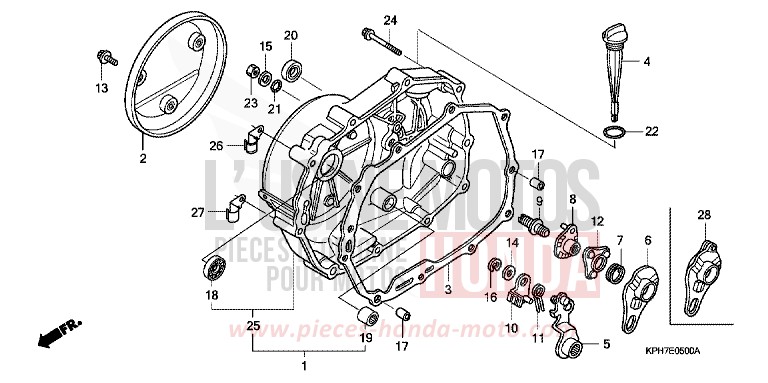

RIGHT CRANKCASE COVER for Innova FORCE SILVER METALLIC (NH411) from 2005

RIGHT CRANKCASE COVER for Innova FORCE SILVER METALLIC (NH411) from 2005
Reference
Product name
#1 11330-KPH-900

COVER COMP, R CRANKCASE

Price €201.00
#2 11370-KPH-900

PROTECTOR COMP, R COVER

Price €12.46
#3 11394-KPH-900

GASKET, R CRANKCASE COVER

Price €16.06
#4 15651-KPH-900

GAUGE, OIL LEVEL

Price €15.38
#5 22810-KPH-900

LEVER COMP, CLUTCH

Price €28.15
#6 22820-KPH-900

PLATE COMP, CLUTCH CAM

Price €23.95
#7 22825-046-000

SPRING, CAM PLATE SIDE

Price €2.52
#8 22830-KPH-900

PLATE COMP, CLUTCH LIFTER

Price €12.32
#9 22846-KPH-901

BOLT, CLUTCH ADJUSTING

Price €5.51
#10 22850-KPH-900

PLATE COMP, BRAKE

Price €32.71
#11 22853-KPH-900

SPRING, BRAKE

Price €2.24
#12 22860-HB3-000

RETAINER COMP, BALL

Price €10.44
#13 90005-GHB-610

BOLT, FLANGE, 6X12

Price €3.44
#14 90443-844-000

WASHER, THRUST, 8MM

Price €1.13
#15 90485-040-000

WASHER, 8MM

Price €5.70
#16 90605-166-720

CIRCLIP, 7MM

Price €4.19
#17 90702-KFM-900

DOWEL PIN, 8X12

Price €3.11
#18 91007-KPH-901

BEARING, RADIAL BALL SPECIAL, 6001U (KOYO)

Price €24.40
#19 91021-148-004

BEARING, NEEDLE, 1010 (NTN)

Price €29.53
#20 91204-MC7-003

OIL SEAL, 16X28X7

Price €7.70
#21 91303-001-000

O-RING, 8MM

Price €7.69
#22 91307-035-000

O-RING, 18X3

Price €2.27
#23 94030-08000

NUT, HEX, 8MM

Price €0.86
#24 96001-0604000

BOLT, FLANGE, 6X40

Price €1.70
