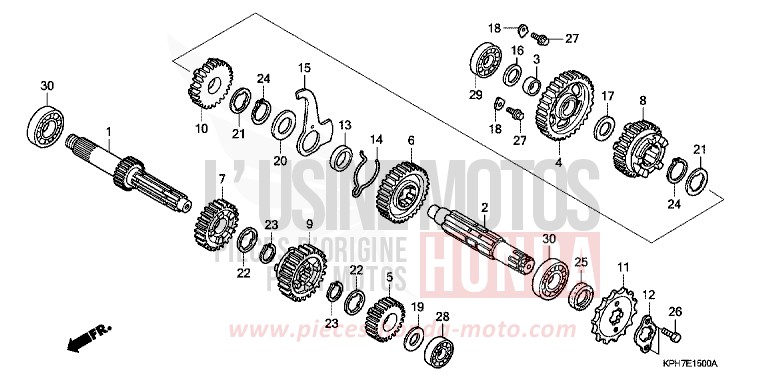

TRANSMISSION for Innova CANDY LIGHTNING BLUE (PB325) from 2003

TRANSMISSION for Innova CANDY LIGHTNING BLUE (PB325) from 2003
Reference
Product name
#1 23211-KPH-900 i

SHAFT PRINCIPAL (14T)

Price €24.10
#2 23221-KPH-900 i

SHAFT OF RENVOI

Price €38.95
#3 23415-KPH-900

RING, 15MM

Price €6.46
#4 23421-KPH-900

PINION PREMIERE D'SHAFT OF RENVOI (35T)

Price €27.10
#6 23441-KPH-900

PINION DEUXIEME D'SHAFT OF RENVOI (31T)

Price €19.46
#8 23461-KPH-900 i

PINION TROISIEME D'SHAFT OF RENVOI (23T)

Price €21.77
#12 23802-GN5-910

PLATE OF FIXING

Price €8.24
#16 90412-KPH-900

SPECIAL WASHER, 12X23

Price €3.28
#17 90412-187-000 i

WASHER OF STOPPER, 15MM

Price €7.20
#18 90441-KA4-700

PLATE OF PORTE-ROULEMENT

Price €7.07
#19 90452-KGH-900 i

SPECIAL WASHER, 12MM

Price €1.86
#21 90461-GB4-770

WASHER CANNELEE, 20X12

Price €6.80
#22 90461-115-000

WASHER CANNELEE, 17MM

Price €7.20
#23 90601-001-000

CIRCLIP EXTERIEUR, 17MM

Price €6.52
#24 90605-200-000 i

BAGUES OF SERRAGE, 20MM

Price €7.91
#25 91204-KPH-901

GASKET SEALING D'OIL, 17X30X5 (ARAI)

Price €1.92
#26 92101-060100A i

BOLT HEX., 6X10

Price €1.07
#27 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
#28 96100-6001000 i

RADIAL BALL BEARING, 6001

Price €15.59
#29 96100-6201000 i

ROULEMENT A BILLES RADIAL, 6201

Price €11.88
#30 96100-6203000 i

ROULEMENT A BILLES RADIAL, 6203

Price €16.33
#5 23431-KPH-900

PINION DEUXIEME D'SHAFT PRINCIPAL (20T)

Price €29.59
#7 23451-KPH-900 i

PINION TR0ISIEME D'SHAFT PRINCIPAL (20T)

Price €13.90
#9 23471-KPH-900 i

GEAR, MAINSHAFT FOURTH (26T)

Price €26.70
#9 23471-KPH-901 i

PINION QUATRIEME D'SHAFT PRINCIPAL (26T)

Price €26.70
#10 23481-KPH-900 i

PINION QUATRIEME D'SHAFT OF RENVOI (24T)

Price €38.58
#11 23801-KPH-970

PINION OF COMMANDE (14T)

Price €19.58
#13 23911-KPH-900

RING, PLATE VERROUILLAGE

Price €3.28
#14 24305-KPH-900

SPRING, FROTTEMENT CHAMGEMENT

Price €3.16
#15 24306-KPH-900

PLATE, VERROUILLAGE DRUM

Price €6.67
#20 90452-413-000

WASHER OF STOPPER, 20MM

Price €10.07
