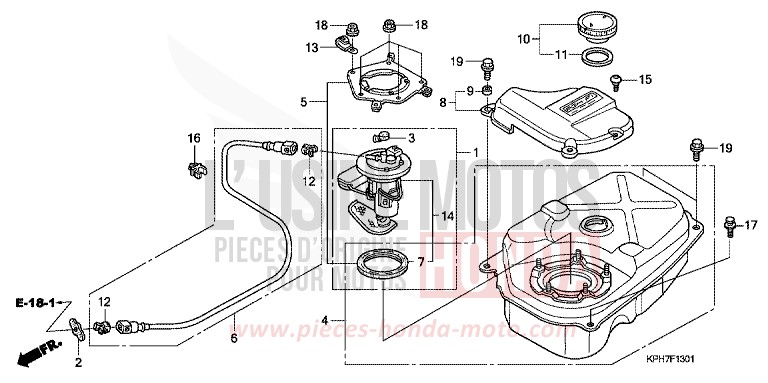

FUEL TANK (2) for Innova CANDY CARIBBEAN BLUE SEA (B189) from 2007

FUEL TANK (2) for Innova CANDY CARIBBEAN BLUE SEA (B189) from 2007
Reference
Product name
#1 16700-KTM-305

PUMP UNIT, FUEL

Price €445.40
#2 16718-KPH-700

DAMPER, CONNECTOR

Price €10.27
#3 16719-KPH-700

DAMPER, CONNECTOR

Price €3.55
#4 17510-KTM-307

TANK SET, FUEL

Price €236.12
#5 17517-KTM-307

PLATE SET, FUEL PUMP SETTING

Price €83.57
#6 17570-KPH-701

HOSE COMP, FUEL FEED

Price €56.47
#7 17572-KTM-D20

GASKET, FUEL PUMP

Price €55.22
#8 17575-KPH-700

COVER, FUEL PUMP

Price €12.84
#9 17578-KPH-700

COLLAR, PUMP COVER

Contact us
#10 17620-KGH-600

CAP, FUEL FILLER

Price €22.46
#11 17631-KEV-900

PACKING, FUEL FILLER CAP

Price €3.18
#12 17711-S0X-A31

RETAINER (GREEN) (TOKAI)

Price €10.73
#13 32925-958-000

CLIP, PULSER CORD

Price €5.68
#14 37801-KTM-D20

FUEL UNIT SET

Price €78.35
#15 90114-KPH-700

SCREW, SPECIAL, 5X11

Price €3.49
#16 90661-KPH-701

CLIP, PIPE

Price €3.49
#17 93404-0601200

BOLT-WASHER, 6X12

Price €1.06
#18 94050-06000

NUT, FLANGE, 6MM

Price €0.78
#19 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
