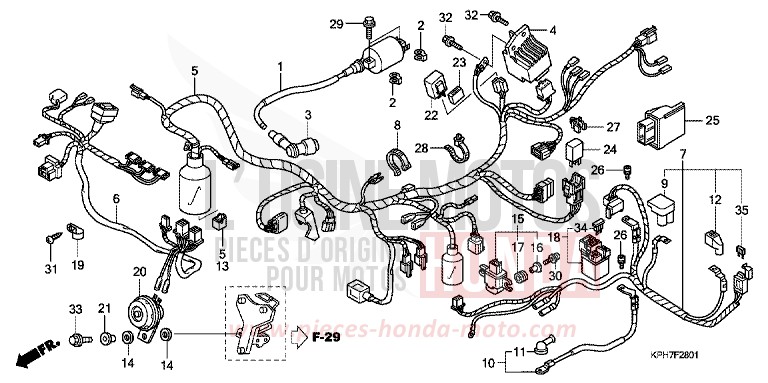

WIRE HARNESS (2) for Innova CANDY BEAM RED (R307) from 2007

WIRE HARNESS (2) for Innova CANDY BEAM RED (R307) from 2007
Reference
Product name
#1 30510-KPH-701

COIL COMP, IGNITION

Price €41.78
#2 30520-ML7-000

IGNITION COIL SPACER

Price €8.32
#3 30700-KPG-901

CAP ASSY, NOISE SUPPRESSOR

Price €18.06
#4 31600-KTM-D21

RECTIFIER COMP, REGULATOR

Price €191.16
#5 32100-KTM-D20

HARNESS, WIRE

Price €118.85
#6 32101-KTM-D20

SUB HARNESS, SPEEDOMETER

Price €63.76
#7 32103-KTM-D20 i

SUB HARNESS, BATTERY

Price €51.86
#8 32161-KRS-600

BAND B1, WIRE

Contact us
#9 32406-KAZ-000 i

COVER OF BORNE MAGNETIQUE OF STARTER MOTOR

Price €15.13
#10 32410-KTM-D20

CABLE, STARTER MOTOR

Price €19.09
#11 32411-253-000 i

COVER DU TERMINAL DU STARTER MOTOR ELECTRIC

Price €12.95
#12 32412-MV4-000

PROTECTOR COSSE BATTERY

Price €8.94
#13 32606-GEV-761

CAP, FAUX (4P) (ROUGE)

Price €10.52
#14 33714-KL3-620

RUBBER OF SUPPORT OF REAR LIGHT

Price €7.60
#15 35160-KPH-701

SENSOR ASSY, BANK ANGLE

Price €49.75
#16 35162-MN5-003

BAND

Price €11.45
#17 35163-MN5-003

RING

Price €9.17
#18 35850-KK6-740

ENS SWITCH MAGNETIQUE STARTER MOTOR

Price €172.19
#19 37215-KR1-760 i

FLANGE

Price €7.36
#20 38110-KTM-D20

HORN COMP

Price €23.40
#21 38117-KFE-701 i

RING, ADJUSTMENT KLAXON

Price €3.28
#22 38301-GN0-603 i

RELAIS COMP. TURN SIGNAL (MITSUBA)

Price €26.29
#23 38306-KK4-000

RUBBER D'DAMPER OF CENTER CLIGNOTANTE (MITSUBA)

Price €9.01
#24 38501-MCS-G00 i

RELAIS COMP ENERGIE (MICRO ISO 4P)

Price €21.71
#25 38770-KTM-D21

PGM-FI UNIT

Price €352.39
#26 90111-MR5-000 i

INNENSECHSKANTBOLT, 5X9

Price €4.96
#27 90661-KPH-701

CLIP, PIPE

Price €3.97
#28 91540-KPH-902

CLIP, HARNESS BAND

Price €3.97
#29 92101-060204J i

BOLT HEX., 6X20

Price €1.81
#30 93891-0402007

SCREW-WASHER, 4X20

Price €0.79
#31 93903-24220

TAPPING BOLT, 4X10

Price €0.64
#32 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
#33 95701-0602000 i

FLANGE BOLT, 6X20

Price €1.08
#34 98200-31500 i

FUSIBLE OF LAME (15A)

Price €1.18
#35 98200-41000

MINI-FUSE (10A)

Price €1.25
