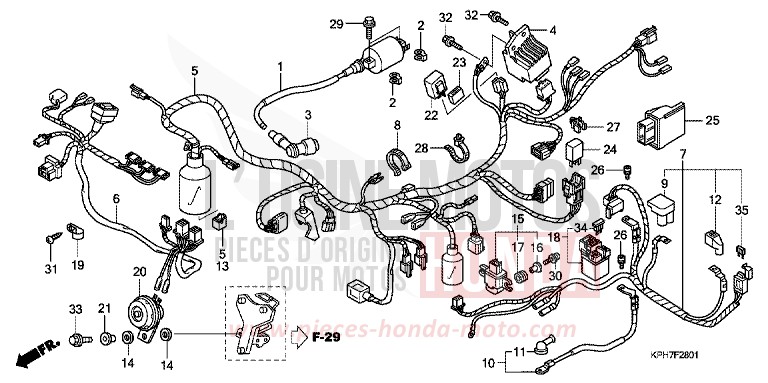

WIRE HARNESS (2) for Innova ASTEROID BLACK METALLIC (NHA35) from 2007

WIRE HARNESS (2) for Innova ASTEROID BLACK METALLIC (NHA35) from 2007
Reference
Product name
#2 30520-ML7-000

SPACER, IGNITION COIL

Price €8.63
#9 32406-KAZ-000

COVER, STARTER MAGNETIC TERMINAL

Price €17.05
#11 32411-253-000

COVER, STARTER MOTOR TERMINAL

Price €12.43
#12 32412-MV4-000

COVER, BATTERY TERMINAL

Price €5.08
#13 32606-GEV-761

CAP, DUMMY (4P) (RED)

Price €10.15
#14 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €6.62
#16 35162-MN5-003

COLLAR

Price €10.15
#17 35163-MN5-003

GROMMET

Price €7.46
#18 35850-KK6-740

SWITCH ASSY, STARTER MAGNETIC

Price €234.68
#19 37215-KR1-760

CLAMP

Price €7.16
#21 38117-KFE-701

COLLAR, HORN SETTING

Price €18.05
#22 38301-GN0-603

RELAY COMP, WINKER (MITSUBA)

Price €94.98
#23 38306-KK4-000

SUSPENSION, WINKER RELAY (MITSUBA)

Price €8.46
#24 38501-MCS-G00

RELAY COMP, POWER (MICRO ISO 4P)

Price €26.11
#26 90111-MR5-000

BOLT, SOCKET, 5X9

Price €3.04
#27 90661-KPH-701

CLIP, PIPE

Price €3.49
#28 91540-KPH-902

CLIP, HARNESS BAND

Price €1.92
#29 92101-060204J

BOLT, HEX, 6X20

Price €1.78
#30 93891-0402007

SCREW-WASHER, 4X20

Price €0.78
#31 93903-24220

SCREW, TAPPING, 4X10

Price €0.62
#32 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#33 95701-0602000

BOLT, FLANGE, 6X20

Price €1.06
#34 98200-31500

FUSE, BLADE (15A)

Price €1.15
#35 98200-41000

FUSE, MINI (10A)

Price €1.22
#1 30510-KPH-701

COIL COMP, IGNITION

Price €67.43
#3 30700-KPG-901

CAP ASSY, NOISE SUPPRESSOR

Price €30.80
#4 31600-KTM-D21

RECTIFIER COMP, REGULATOR

Price €219.67
#5 32100-KTM-D20

HARNESS, WIRE

Price €188.38
#6 32101-KTM-D20

SUB HARNESS, SPEEDOMETER

Price €48.24
#7 32103-KTM-D20

SUB HARNESS, BATTERY

Price €56.33
#8 32161-KRS-600

BAND B1, WIRE

Contact us
#10 32410-KTM-D20

CABLE, STARTER MOTOR

Price €34.14
#15 35160-KPH-701

SENSOR ASSY, BANK ANGLE

Price €64.18
#20 38110-KTM-D20

HORN COMP

Price €39.00
#25 38770-KTM-D21

PGM-FI UNIT

Price €430.13
