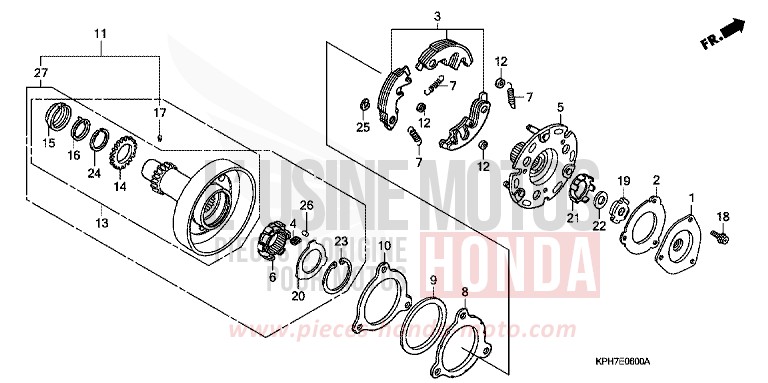

ONE WAY CLUTCH for Innova ASTEROID BLACK METALLIC (NHA35) from 2007

ONE WAY CLUTCH for Innova ASTEROID BLACK METALLIC (NHA35) from 2007
Reference
Product name
#1 15431-KPH-900

COVER, OIL FILTER

Price €5.32
#2 15439-KPH-900

GASKET, OIL FILTER

Price €4.42
#3 22535-KPH-305

WEIGHT SET, PRIMARY CLUTCH

Price €109.98
#4 22606-GN5-910

SPRING, ONE WAY RETAINER

Price €9.22
#5 22610-KPH-900

PLATE COMP, PRIMARY DRIVE (FCC)

Price €32.48
#6 22630-GB2-000

INNER COMP, ONE-WAY CLUTCH

Price €48.31
#7 22641-KPH-900

SPRING, PRIMARY CLUTCH

Price €4.19
#8 22642-KPH-900

WASHER, CLUTCH SIDE

Price €6.38
#9 22643-KPH-900

SPRING, SIDE FRICTION

Price €17.66
#10 22644-KPH-900

PLATE, CLUTCH SIDE

Price €13.52
#11 22660-KPH-900

OUTER ASSY, PRIMARY CLUTCH

Price €491.75
#13 23120-KPH-900

GEAR COMP, PRIMARY DRIVE

Price €97.97
#14 23122-KPH-900

SUB GEAR (20T)

Price €11.75
#15 23123-KPH-900

RETAINER, SPRING (FCC)

Price €9.35
#16 23124-KPH-900

SPRING, SUB GEAR

Price €4.38
#17 23125-GN5-910

PIN (FCC)

Price €6.43
#18 90083-KFL-850

BOLT, SPECIAL FLANGE, 5X8

Price €3.74
#19 90231-087-010

NUT, LOCK, 14MM

Price €6.80
#20 90401-GB2-000

WASHER, 30X45X08

Price €8.80
#21 90431-GN5-910

WASHER, LOCK

Price €2.44
#22 90432-086-000

WASHER B, LOCK

Price €9.25
#23 90455-GB2-000

CIRCLIP, INTERNAL, 45MM

Price €10.28
#24 90603-KPH-900

SET RING, 25MM

Price €3.67
#25 90605-166-720

CIRCLIP, 7MM

Price €4.19
#26 91101-GB2-000

ROLLER, 5X8

Price €12.71
#4 22606-KPH-880

SPRING, ONE WAY RETAINER

Price €9.22
#5 22610-KTM-D20

PLATE COMP, PRIMARY DRIVE (EXEDY)

Contact us
#10 22644-KTM-D20

PLATE, CLUTCH SIDE (EXEDY)

Contact us
#12 22804-KPH-880

RUBBER, CLUTCH DAMPER

Price €7.12
#15 23123-KTM-D20

RETAINER, SPRING (EXEDY)

Price €11.04
#27 22660-KTM-D20

OUTER ASSY, PRIMARY CLUTCH (EXEDY)

Price €257.98
