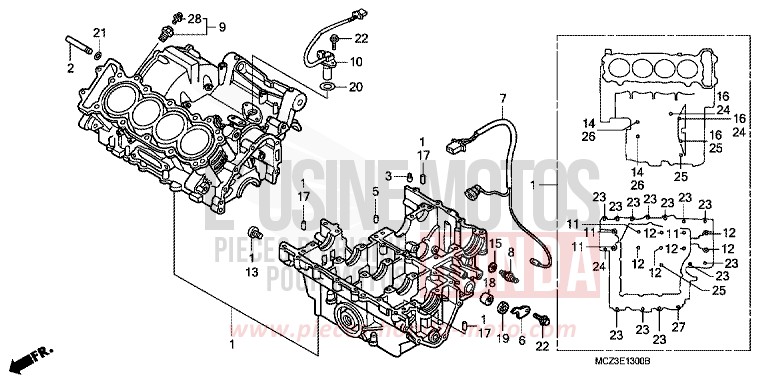

CRANKCASE for Hornet 900 NOIR (NH1) from 2004

CRANKCASE for Hornet 900 NOIR (NH1) from 2004
Reference
Product name
#1 11000-MCZ-000

CRANKCASE SET

Contact us
#2 11103-MAT-000

PLUG, SEALING

Price €21.38
#3 11104-MW0-000

ORIFICE, 12MM

Price €19.62
#5 15515-KT8-000

ORIFICE, 12MM

Price €12.17
#6 24612-MAL-600

PLATE, SPINDLE

Price €12.19
#7 32101-MCZ-000

SUB CORD, ENGINE

Price €52.45
#8 35600-KE8-003 i

SWITCH ASSY, NEUTRAL (TOYO)

Price €44.45
#9 37240-P13-013 i

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €47.48
#10 37700-MCZ-000

SENSOR ASSY, SPEED

Price €324.02
#11 90014-MAS-E00

BOLT, FLANGE, 9X90

Price €13.97
#12 90015-MAT-000 i

BOLT, FLANGE, 9X110

Price €8.74
#13 90048-ME5-000

BOLT, SEALING, 20MM

Price €17.89
#14 90442-028-000

WASHER, SEALING, 8MM

Price €5.71
#15 90443-MJ6-000

WASHER, NEUTRAL

Price €5.02
#16 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#17 90701-MV9-670

DOWEL PIN, 10X16

Price €7.63
#18 91106-KM1-013

BEARING, NEEDLE, 14X22X16

Price €21.79
#19 91203-KA4-771 i

OIL SEAL, 14X22X5 (NOK)

Price €7.16
#20 91302-MAL-601

O-RING, 181X36

Price €6.53
#21 91315-PN1-000

O-RING, 52X19

Price €5.18
#22 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
#23 95701-0603500 i

BOLT, FLANGE, 6X35

Price €1.34
#24 95701-0605500 i

BOLT, FLANGE, 6X55

Price €1.51
#25 95701-0606500 i

BOLT, FLANGE, 6X65

Price €1.74
#26 95701-0806500 i

BOLT, FLANGE, 8X65

Price €2.05
#27 95701-1006500 i

BOLT, FLANGE, 10X65

Price €3.17
#28 90002-PA6-003

BOLT-WASHER, 4X8 (DENSO)

Price €6.14
