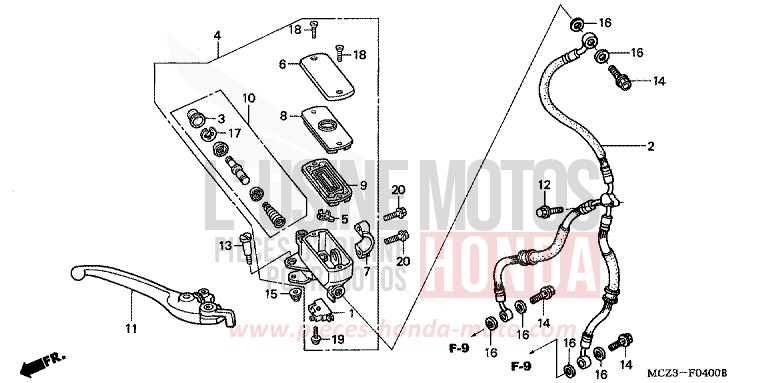

FR. BRAKE MASTER CYLINDER for Hornet 900 CANDY BLAZE ORANGE (YR196) from 2007

FR. BRAKE MASTER CYLINDER for Hornet 900 CANDY BLAZE ORANGE (YR196) from 2007
Reference
Product name
#1 35340-MM5-600

SWITCH ASSY, FR STOP

Price €44.35
#2 45125-MCZ-003

HOSE COMP, FR BRAKE

Price €167.59
#3 45504-410-003

BOOT COMP

Price €15.22
#4 45510-MZ1-305

CYLINDER SUB ASSY, FR BRAKE MASTER (NISSIN)

Price €349.06
#5 45512-MA6-006

PROTECTOR

Price €74.21
#6 45513-MM5-016

CAP, MASTER CYLINDER (NISSIN)

Price €52.61
#7 45517-166-006

HOLDER, MASTER CYLINDER

Price €22.57
#8 45518-MM5-006

PLATE, DIAPHRAGM

Price €15.23
#9 45520-MM5-006

DIAPHRAGM

Price €33.04
#10 45530-MA4-671

CYLINDER SET, MASTER

Price €76.90
#11 53170-MBR-J11

LEVER ASSY, R HANDLE

Price €78.05
#12 90108-MCZ-000

BOLT, FLANGE, 6X20

Price €6.49
#13 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#14 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#15 90201-415-000

NUT, CAP, 6MM

Price €5.94
#16 90545-300-000

WASHER, OIL BOLT

Price €6.41
#17 90651-MA5-671

CIRCLIP

Price €5.83
#18 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#19 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#20 90101-MBZ-G00

BOLT, FLANGE, 6X22

Price €3.98
