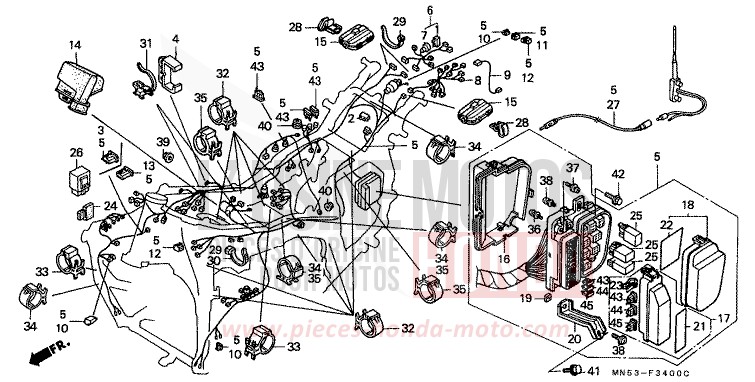

WIRE HARNESS for Gold Wing R114J (R114J) from 1989

WIRE HARNESS for Gold Wing R114J (R114J) from 1989
Reference
Product name
#1 31700-124-003

RECTIFIER ASSY, SILICON (STANLEY)

Price €36.23
#1 31700-124-008

RECTIFIER ASSY, SILICON (SHINDENGEN)

Price €36.23
#2 31710-371-008

RECTIFIER, SILICON (SHINDENGEN)

Price €58.57
#5 32100-MT2-601

HARNESS, WIRE

Contact us
#5 32100-MT2-602

HARNESS, WIRE

Contact us
#6 32101-MT2-000

SUB HARNESS, R RR

Contact us
#8 32102-MT2-600

SUB HARNESS, L RR

Contact us
#9 32107-MN5-600

SUB CORD, TAILLIGHT &amp STOP

Contact us
#10 32136-MN5-003

COVER, COUPLER (2P)

Contact us
#11 32137-KB2-003

COVER, COUPLER (4P)

Contact us
#12 32138-KB2-003

COVER, COUPLER (6P)

Contact us
#13 32146-SH3-003

CONNECTOR, DIODE (2P)

Price €26.94
#14 32814-MN5-010

COVER, RADIO CONNECTOR

Price €6.41
Contact us
#15 32815-MN5-003

CASE, COUPLER (22P)

Price €3.05
Contact us
#16 38204-MN5-000

COVER, RELAY &amp FUSE BOX LOWER

Contact us
#17 38205-MN5-600

COVER ASSY, FUSE BOX

Contact us
#18 38206-MT2-600

COVER ASSY, RELAY BOX

Price €26.80
Contact us
#19 38207-MN5-000

NUT, BRACKET, 5MM

Contact us
#20 38208-MN5-000

BRACKET, RELAY &amp FUSE BOX

Contact us
#21 38215-MN5-600

LABEL, FUSE BOX

Contact us
#22 38216-MT2-600

LABEL, RELAY BOX

Contact us
#23 38235-SA5-003

PULLER, FUSE (SUMITOMO)

Price €9.98
#25 38370-MN5-003

RELAY COMP (20A)

Price €66.65
#27 39159-MN5-003

SUB FEEDER, ANTENNA

Contact us
#28 50324-MN5-000

CLAMPER, COUPLER CASE

Price €9.31
#29 90650-MA6-720

BAND, WIRE HARNESS

Price €8.59
#30 90651-MA6-720

BAND, WIRE HARNESS

Price €7.72
#31 90690-GHB-611

CLIP, HARNESS BAND, 25MM

Price €2.33
#32 90690-GHB-641

CLIP, CABLE, 10MM

Price €2.04
#33 90690-GHB-651

CLIP, CABLE, 15MM

Price €2.04
#34 90690-GHB-661

CLIP, CABLE, 20MM

Price €2.04
#35 90690-GHB-671

CLIP, CABLE, 25MM

Price €2.04
#36 93893-0400808

SCREW-WASHER, 4X8

Price €1.06
#37 93893-0401008

SCREW-WASHER, 4X10

Price €1.15
#38 93893-0501008

SCREW-WASHER, 5X10

Price €1.15
#39 94001-040000S

NUT, HEX, 4MM

Price €0.84
#40 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#41 95701-0601008

BOLT, FLANGE, 6X10

Price €1.06
#42 95701-0601208

BOLT, FLANGE, 6X12

Price €1.06
#43 98200-30500

FUSE, BLADE (5A)

Price €1.14
#44 98200-31000

FUSE, BLADE (10A)

Price €1.15
#45 98200-31500

FUSE, BLADE (15A)

Price €1.15
