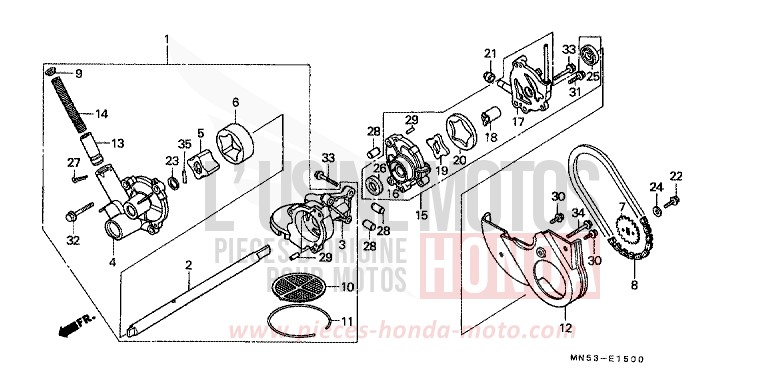

OIL PUMP for Gold Wing R114J (R114J) from 1988

OIL PUMP for Gold Wing R114J (R114J) from 1988
Reference
Product name
#1 15110-MN5-030

PUMP ASSY, OIL

Price €477.54
Contact us
#2 15111-MN5-020

SHAFT, OIL PUMP

Contact us
#3 15112-MN5-000

BODY, OIL PUMP

Contact us
#4 15113-MN5-000

COVER, OIL PUMP

Contact us
#5 15124-MJ0-000

ROTOR, INNER

Price €31.91
#6 15125-MJ0-000

ROTOR, OUTER

Price €35.52
#7 15134-MN5-000

SPROCKET, OIL PUMP DRIVEN (24T)

Price €45.56
#8 15135-MN5-003

CHAIN, OIL PUMP DRIVE (DAIDO) (SC-0412HX54L)

Price €53.22
#9 15142-371-000

SEAT, RELIEF VALVE

Price €4.58
#10 15150-MG7-000

SCREEN COMP, OIL PUMP

Price €37.79
Contact us
#11 15160-PA5-003

RING, SNAP, 92MM

Price €5.10
#12 15171-MN5-000

GUIDE, OIL PUMP CHAIN

Price €96.05
#13 15231-MN5-010

VALVE, RELIEF

Contact us
#14 15232-MN5-000

SPRING, RELIEF VALVE

Price €6.32
#15 15240-MN5-000

PUMP ASSY, SCAVENGE OIL

Contact us
#16 15241-MN5-000

BODY, SCAVENGE OIL PUMP

Contact us
#17 15242-MN5-000

COVER COMP, SCAVENGE OIL PUMP

Contact us
#18 15243-MN5-000

COLLAR, OIL PUMP

Contact us
#19 15244-MN5-000

ROTOR, INNER

Price €22.82
#20 15245-MN5-000

ROTOR, OUTER

Price €27.68
#21 15247-MN5-000

GROMMET, SCAVENGE OIL PUMP

Price €6.89
#22 90021-KE8-010

BOLT, HEX, 6X16

Price €7.01
Contact us
#23 90456-MC7-000

WASHER, THRUST, 13MM

Price €8.48
#24 90488-MB0-000

WASHER, 6X23

Price €5.65
#27 94201-30250

PIN, SPLIT, 30X25

Price €0.78
#28 94301-08140

DOWEL PIN, 8X14

Price €2.02
#29 94303-05080

DOWEL PIN, 5X8

Price €1.88
#30 95701-0601408

BOLT, FLANGE, 6X14

Price €1.13
#31 95701-0601800

BOLT, FLANGE, 6X18

Price €1.13
#32 95701-0602200

BOLT, FLANGE, 6X22

Price €1.39
#33 95701-0603208

BOLT, FLANGE, 6X32

Price €1.22
#34 95701-0604508

BOLT, FLANGE, 6X45

Price €1.48
#35 96220-50178

ROLLER, 5X178

Price €0.38
