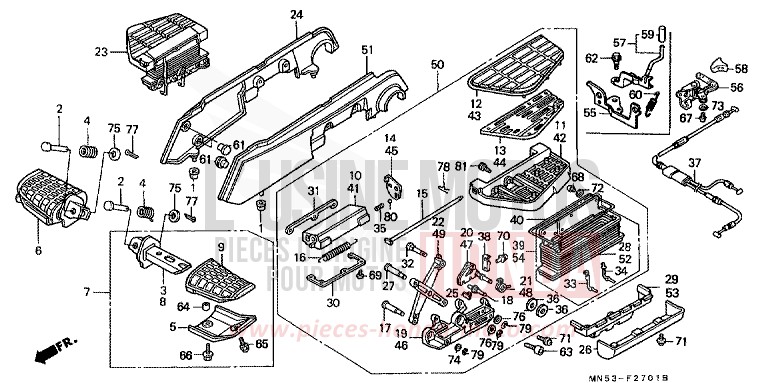

STEP (GL1500SEM/SEN) for Goldwing BLACK-Z (NH1ZD) from 1992

Reference

Product name

Unit price

#1 19113-MB1-870

RUBBER OF MOUNTING OF RADIATOR

€8.72

#2 50603-MN5-000 i

PIN OF PIVOT OF STEP

€12.60

#3 50612-MT2-000

BAR COMP. REPOSE PIEDS R.

€127.34

#4 50617-MB1-700

SPRING OF RAPPEL OF REPOSE- PIEDS

€11.74

#5 50619-MN5-000

COVER OF PART LOWER OF STEP

€53.72

#6 50630-MT2-000

ASSY. REPOSE-PIEDS PRINCIPAL R.

#7 50640-MT2-000

ASSY. REPOSE-PIEDS PRINCIPAL L.

#8 50642-MT2-000

BAR COMP. REPOSE PIEDS L.

€127.34

#9 50661-MN5-000

RUBBER OF REPOSE-PIEDS PRINCIPAL

€40.09

#10 50715-MT8-771

SUPPORT OF STEP SEAT REAR R.

#11 50716-MT8-771

PLATE OF STEP OF SIEGEDE PASSAGER

€129.25

#12 50718-MN5-000

RUBBER OF STEP SEAT REAR R.

€40.09

#13 50719-MN5-000

PALQUE OF STEP REAR

€22.48

#14 50720-MT8-770

PLATE OF CLIOUETTES OF STEP SIELLE REAR R.

€11.28

#15 50721-MT8-770

PIN OF STEP OF SEAT REAR

€5.65

#16 50722-MT8-770

SPRING OF REGULATOR

#17 50723-MT8-770

PIN, 6MM (A)

#18 50724-MT8-770

PIN, 8MM (B)

#19 50725-MT8-771

SUPPORT OF STEP SELLE REAR R.

#20 50726-MT8-770

ARM OF STOPPER R.

#21 50727-MT8-770

SPRING OF ARM OF STOPPER R.

#22 50729-MT8-770

PASSENGER STEP LINK COMP.

#23 50730-MT8-770

ASSY. STEP PASSAGER REGLABLE R.

#24 50731-MW5-770

COVER OF SUPPORT OF STEP OF SEAT OF PASSAGER

€229.15

#25 50732-MT8-770

RUBBER OF STOPPER

#26 50733-MT8-770

PASSENGER STEP SUPPORT COVER

€29.40

#27 50734-MT8-770

AXE (C)

#28 50735-MT8-771 i

COVER OF TRINGLERIE OF STEP PASSAGER R.

€108.67

#29 50736-MT8-770

FOURCHE OF ADJUSTMENT OF COVER DETRINGLERIE R.

#30 50737-MT8-770

PLATE OF COVER OF TRINGLERIE

#31 50739-MT8-770

PLATE B OF ADJUSTMENT OF COVER OF TRINGLERIE

#32 50741-MT8-770

AXE (D)

#33 50742-MT8-770

CROCHET A OF COVER OF TRINGLERIE

€7.20

#34 50743-MT8-770

GROCHET B OF COVER OF TRINGLERIE

€9.76

#35 50746-MT8-770

SPRING D'ENCLIQUETAGE OF ADJUSTMENT OF STEP PASS.

€4.88

#36 50747-MT8-770

WASHER OF STOPPER, 8MM

#37 50750-MT8-770

CABLE COMP. OF ADJUSTMENT OF STEP PASSAGER

€50.34

#38 50751-MT8-770

STAY OF CABLE

#39 50755-MT8-770

ASSY. COVER OF STEP PASSAGER R.

€171.13

#40 50756-MT8-770

RING OF COVER OF LINK

€6.47

#41 50815-MT8-771

SUPPORT OF STEP SEAT L.

#42 50816-MT8-771

PLATE OF STEP OF PASSAGER L.

€201.77

#43 50818-MN5-000

RUBBER OF STEP SEAT REAR L.

€28.48

#44 50819-MN5-000

PLATE OF STEP L.

€17.63

#45 50820-MT8-770

PLATE OF CLIOUETTES OF STEP SIELLE REAR L.

€11.70

#46 50825-MT8-771

SUPPORT OF STEP SELLE REAR L.

€72.95

#47 50826-MT8-770

ARM OF STOPPER L.

#48 50827-MT8-770

SPRING OF ARM OF STOPPER L.

#49 50829-MT8-770

PASSENGER STEP LINK COMP.

#50 50830-MT8-770

ASSY. STEP PASSAGER REGLABLE L.

#51 50831-MW5-770

COVER OF SUPPORT OF STEP OF PASSAGER L.

€252.55

#52 50835-MT8-771

COVER OF TRINGLERIE OF STEP PASSAGER L.

€160.31

#53 50836-MT8-770

FOURCHE OF ADJUSTMENT OF COVER DETRINGLERIE L.

#54 50855-MT8-770

ASSY. COVER OF STEP PASSAGER

#56 74882-MT8-771

PASSENGER STEP REMOTE CONTROL LEVER COMP.

€59.77

#58 74885-MT8-770 i

PASSENGER STEP REMOTE CONTROL LEVER KNOB

€205.63

#61 84103-443-611 i

CAP OF PARE-CHOC REAR

€8.99

#63 90157-MB1-000 i

BOLT OF DOUILLE, 8X18

€11.05

#64 90325-197-000

BAND OF BAVETTE REAR

€5.71

#65 92501-060080B

BOLT OF CAP, 6X8

#66 93403-0602000

WASHER A BOLT, 6X20

€1.42

#68 93500-030060A i

CYLINDRICAL HEAD SCREW, 3X6

€0.85

#69 93500-030080A i

CYLINDRICAL HEAD SCREW, 3X8

€0.85

#70 93891-0501007

SCREW A HEAD A WASHER, 5X10

€0.88

#71 93891-0501008 i

SCREW A HEAD A WASHER, 5X10

€0.88

#72 94101-03000

WASHER PLATE, 3MM

€0.73

#73 94101-03700

WASHER PLATE, 3MM

€0.64

#74 94101-06800 i

WASHER PLATE, 6MM

€0.78

#75 94102-08000

WASHER PLATE, 8MM

€1.24

#76 94102-08800

WASHER PLATE, 8MM

€0.64

#77 94201-16150 i

PIN FENDUE, 1.6X15

€0.78

#78 94251-08000 i

PIN OF BLOCAGE, 8MM

€1.25

#79 94540-05018

RING EN E, 5MM

€2.70

#80 96211-08000 i

BILLE D'ACIER, 8 (1/4)

€0.46

#81 96600-0601608 i

BOLT OF DOUILLE, 6X16

€1.18

STEP (GL1500SEM/SEN) for Goldwing BLACK-Z (NH1ZD) from 1992
