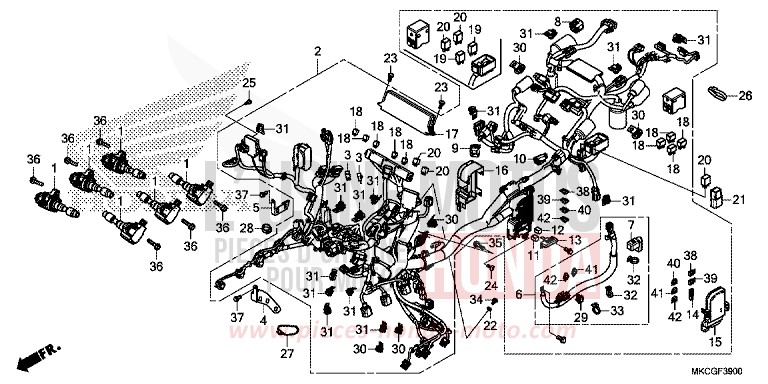

WIRE HARNESS for GL1800 CANDY ARDENT RED (R367) from 2020

WIRE HARNESS for GL1800 CANDY ARDENT RED (R367) from 2020
Reference
Product name
#1 30510-MKC-A01

ENS BOBINAGE, BOUCHON SUPERIEUR

Price €186.12
#2 32100-MKC-E20

FAISCEAU ELECTRIQUE

Price €2,082.24
#3 32146-S84-003

CONNECTOR, DIODE (2P) (3A)

Price €24.08
#4 32153-MKC-A00

APPUI, CONNECTEUR B

Price €31.27
#5 32158-MKC-A00

APPUI, CONNECTEUR C

Price €22.27
#6 32401-MKC-A20

CABLE DE BATTERIE DE DEMARREUR

Price €161.83
#7 32412-MCA-000

PROTECTION COSSE BATTERIE

Price €7.06
#8 32605-GEV-761

CAP, DUMMY (WPC 4P 090 M) (NATURAL)

Price €10.52
#9 32606-K44-V01

CAP, DUMMY (WPC 4P 090 M) (RED)

Price €16.18
#11 38211-MCA-A61

FUSIBLE, BLOC DE 60 A (LOW-PROFILE)

Price €4.94
#12 38211-SNA-A21

FUSE, BLOCK (40A)

Price €9.31
#13 38231-SFE-J01

FUSIBLE A, BLOC MULTIPLE (120A/40A)

Price €27.04
#14 38235-S04-003

PULLER, MINI FUSE (SUMITOMO)

Price €4.80
#15 38251-MKC-E20

JEU DE COUVERCLE, SUPERIEUR (WL)

Price €41.89
#16 38256-MCA-A61 i

COUVERCLE INFERIEUR

Price €21.02
#17 38282-MKC-A01

COUVERCLE SUPERIEUR

Price €46.98
#18 38501-MEL-003 i

RELAY ASSY, POWER (MICRO ISO 4P)

Price €7.66
#19 38502-MCS-G01 i

RELAY COMP, POWER (MICRO ISO 5P)

Price €21.71
#20 38503-MCA-A61 i

RELAY COMP, POWER (MICRO ISO 4P)

Price €9.50
#21 38506-MCS-G00

SUSPENSION, POWER RELAY

Price €16.68
#22 90007-MA3-770

COLLIER, 6X55

Price €2.98
#23 93903-25380

SCREW, TAPPING, 5X16

Price €0.64
#24 90109-KBV-000

SCREW, TRUSS, 5X14

Price €7.08
#25 90300-GB6-920

SCREW, MUDGUARD

Price €6.94
#26 90650-KV6-003 i

BAND, WIRE, 95MM

Price €9.46
#27 90651-KV6-003 i

BAND, WIRE, 165MM (BLACK)

Price €9.78
#28 90683-KJ2-003 i

CLIP, WIRE HARNESS

Price €9.12
#29 91533-S04-003

CLIP, COUPLER (NATURAL)

Price €5.05
#30 91535-STK-003

CLIP, COUPLER (DARK BLUE)

Price €11.84
#31 91535-TA0-003

CLIP, COUPLER (DARK BROWN)

Price €11.84
#32 91540-S7S-003

CLIP, HARNESS BAND (BLACK) (1577MM)

Price €8.26
#33 91541-S0A-003

CLIP, HARNESS BAND (BLACK) (145MM)

Price €6.83
#34 93500-040140A i

SCREW, PAN, 4X14 (CARBURETOR NO)

Price €0.95
#35 95701-0602008 i

BOLT, FLANGE, 6X20

Price €1.15
#36 95701-0602508 i

BOLT, FLANGE, 6X25

Price €1.25
#37 96001-0601207 i

BOLT, FLANGE, 6X12

Price €1.25
#38 98200-40500

FUSE, MINI (5A)

Price €0.88
#39 98200-41000

FUSE, MINI (10A)

Price €1.25
#40 98200-41500

FUSE, MINI (15A)

Price €1.25
#41 98200-42000

FUSE, MINI (20A)

Price €1.25
#42 98200-43000

FUSE, MINI (30A)

Price €1.85
