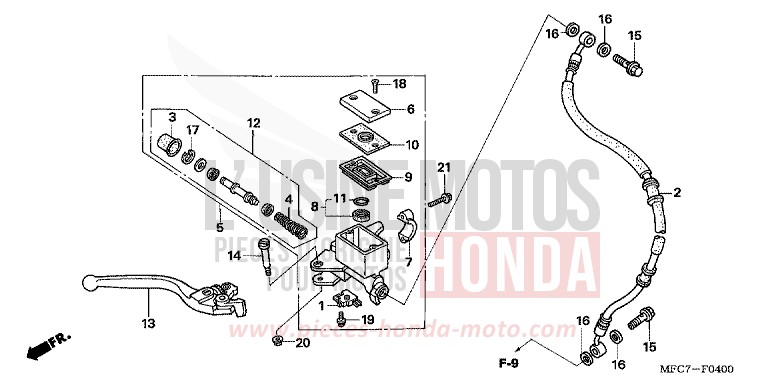

FR. BRAKE MASTER CYLINDER for FMX650 ROSS WHITE (NH196) from 2006

FR. BRAKE MASTER CYLINDER for FMX650 ROSS WHITE (NH196) from 2006
Reference
Product name
#1 35340-MM5-600

SWITCH ASSY, FR STOP

Price €44.35
#2 45125-MFC-641

HOSE COMP, FR BRAKE

Price €69.89
#3 45504-410-003

BOOT COMP

Price €15.22
#4 45506-KA3-731

SPRING

Price €9.42
#5 45510-MFC-641

CYLINDER SUB ASSY, FR MASTER (NISSIN)

Price €287.40
#6 45513-KK1-771

CAP, MASTER CYLINDER

Price €54.41
#7 45517-166-006

HOLDER, MASTER CYLINDER

Price €22.57
#8 45518-KY1-701

SEPARATOR COMP

Price €13.15
#9 45520-MG7-006

DIAPHRAGM

Price €24.06
#10 45521-HA2-006

PLATE, DIAPHRAGM

Price €13.94
#11 45523-KY1-701

CLIP

Price €6.68
#12 45530-MN9-305

CYLINDER SET, MASTER

Price €69.78
#13 53170-MAB-621

LEVER ASSY, R HANDLE

Price €78.05
#14 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#15 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#16 90545-300-000

WASHER, OIL BOLT

Price €6.41
#17 90651-MA5-671

CIRCLIP

Price €5.83
#18 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#19 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#20 94050-06000

NUT, FLANGE, 6MM

Price €0.78
#21 96001-0602207

BOLT, FLANGE, 6X22

Price €1.70
