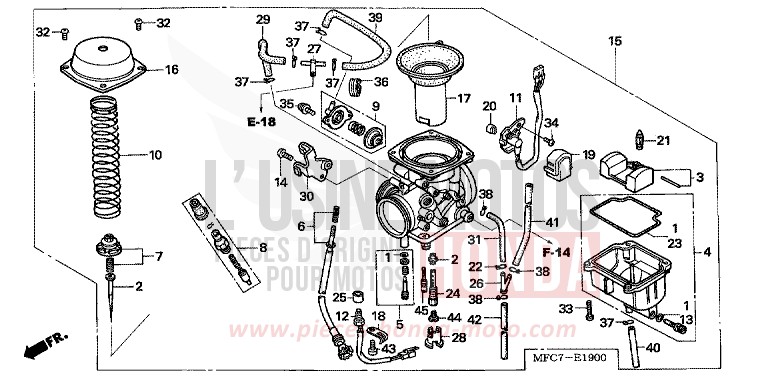

CARBURETOR for FMX650 ROSS WHITE (NH196) from 2006

CARBURETOR for FMX650 ROSS WHITE (NH196) from 2006
Reference
Product name
#1 16010-KPK-901

GASKET SET

Price €37.43
#2 16012-MFC-622

NEEDLE SET, JET

Price €68.34
#3 16013-KR3-980

FLOAT SET

Price €65.93
#4 16015-MFC-621

CHAMBER SET, FLOAT

Price €157.28
#5 16016-MFC-621

SCREW SET

Price €54.47
Contact us
#6 16029-MAK-651

SCREW SET

Price €59.60
#7 16037-MAK-000

PLATE SET, VALVE

Price €29.72
#8 16046-MY6-770

VALVE SET, STARTER

Price €85.88
#9 16048-MAN-620

VALVE SET, AIR CUT

Price €150.53
#10 16050-MFC-621

SPRING, COMPRESSION COIL

Price €26.99
Contact us
#11 16060-MFC-621

SENSOR ASSY, THROTTLE

Contact us
#12 16070-MFC-622

HEATER ASSY

Contact us
#13 16076-ND5-004

O-RING, 13X43

Price €5.23
#14 16080-MFC-741

SCREW, TORX, 5X10

Price €4.51
Contact us
#34 93500-050101A

SCREW, PAN, 5X10

Price €0.84
#15 16100-MFC-624

CARBURETOR ASSY (VE95A B)

Price €435.32
#15 16100-MFC-744

CARBURETOR ASSY (VE95A Q)

Contact us
#16 16107-MK4-602

TOP COMP

Price €67.85
#17 16111-MFC-621

PISTON COMP, VACUUM

Price €129.82
#18 16134-MFC-621

BINDER

Price €7.14
#19 16140-MAK-000

COVER, THROTTLE SENSOR

Contact us
#20 16145-MZ2-780

JOINT, CONNECTOR

Price €30.28
#21 16155-MN9-004

VALVE COMP, FLOAT

Price €48.68
#22 16163-KM4-004

CLIP, TUBE

Price €4.80
#23 16163-KPK-901

GASKET, FLOAT CHAMBER

Price €10.66
#24 16165-MFC-621

HOLDER, NEEDLE JET

Price €54.65
#25 16172-MW2-900

COLLAR, SETTING

Price €13.06
#26 16180-ML6-671

JOINT

Price €21.79
#27 16180-195-731

T-JOINT

Price €16.86
#28 16185-MN9-004

PLATE, BUFFER

Price €19.13
#29 16198-MAK-610

TUBE

Price €6.34
#30 16199-MFC-621

STAY, WIRE

Price €77.88
#30 16199-MFC-741

STAY, WIRE

Price €84.19
Contact us
#31 16199-MN9-004

TUBE

Price €16.76
#32 93500-040081A

SCREW, PAN, 4X8

Price €0.92
#33 93500-040141A

SCREW, PAN, 4X14

Price €0.92
#35 93892-0401018

SCREW-WASHER, 4X10

Price €0.84
#36 94591-44000

CLIP, 4X40

Price €2.72
#37 95002-02079

CLIP, TUBE (B7)

Price €0.86
#38 95002-02089

CLIP, TUBE (B1 8)

Price €0.86
#39 95005-3518010

TUBE, 35X180 (95005-35001-10M)

Price €5.40
Contact us
#40 95005-3540050

TUBE, 35X400 (95005-35001-50M)

Price €4.92
#41 95005-4530050

TUBE, 45X300 (95005-45001-50M)

Price €3.64
Contact us
#42 95005-4534050

TUBE, 45X340 (95005-45001-50M)

Contact us
#43 96700-0601218

BOLT, SOCKET, 6X12

Contact us
#44 99101-MFC1680

JET, 168

Price €12.66
#45 99104-KC10500

JET, SLOW, 50

Price €13.19
