HANDLE LEVER/SWITCH/CABLE 🏍️ FMX650
HANDLE PIPE/TOP BRIDGE 🏍️ FMX650

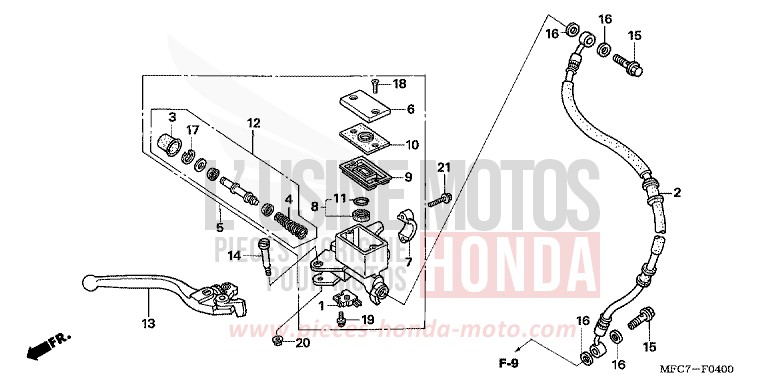

FR. BRAKE MASTER CYLINDER for FMX650 FIGHTING RED (R134) from 2006

FR. BRAKE MASTER CYLINDER for FMX650 FIGHTING RED (R134) from 2006
Reference
Product name
#1 35340-MM5-600 i

ASSY. SWITCH STOP FRONT

Price €40.21
#2 45125-MFC-641

HOSE COMP, FR BRAKE

Price €73.87
#3 45504-410-003 i

BOOT COMP.

Price €17.71
#4 45506-KA3-731

SPRING

Price €12.14
#5 45510-MFC-641

CYLINDER SUB ASSY, FR MASTER (NISSIN)

Price €389.44
#6 45513-KK1-771 i

CAP, HAUPTCYLINDER

Price €39.60
#7 45517-166-006 i

SUPPORT OF MASTER CYLINDER

Price €28.03
#8 45518-KY1-701

SEPARATEUR COMP

Price €18.78
#9 45520-MG7-006 i

MEMBRANE

Price €19.44
#10 45521-HA2-006 i

PLATE, MEMBRANE

Price €18.22
#11 45523-KY1-701

ATTACHE

Price €6.77
#12 45530-MN9-305 i

SET OF MASTER CYLINDER

Price €74.99
#13 53170-MAB-621

LEVER ASSY. HANDLEBAR D

Price €60.62
#14 90114-MA5-671 i

BOLT OF PIVOT OF LEVER HANDLE

Price €13.19
#15 90145-MS9-612 i

BOLT OIL, 10X22 (SAGA)

Price €16.85
#16 90545-300-000 i

WASHER OF BOLT OIL

Price €5.30
#17 90651-MA5-671 i

CIRCLIP

Price €7.63
#18 93600-040121G i

SCREW A HEAD PLATE, 4X12

Price €0.77
#19 93893-0401217 i

SCREW A HEAD A WASHER, 4X12

Price €1.08
#20 94050-06000 i

FLANGE NUT, 6MM

Price €0.79
#21 96001-0602207 i

FLANGE BOLT, 6X22

Price €1.74
