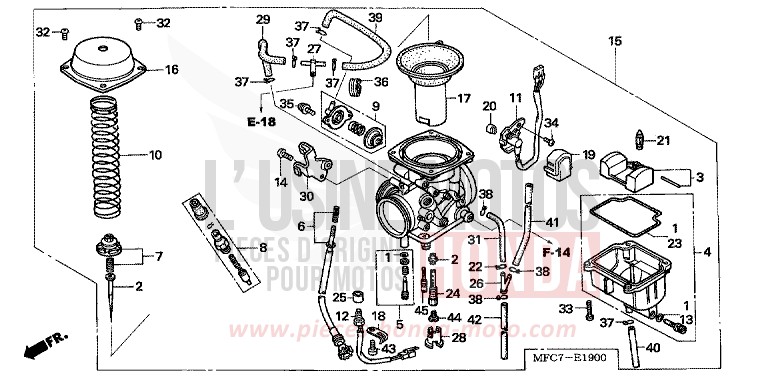

CARBURETOR for FMX650 FIGHTING RED (R134) from 2005

CARBURETOR for FMX650 FIGHTING RED (R134) from 2005
Reference
Product name
#1 16010-KPK-901 i

GASKET SET

Price €8.64
#2 16012-MFC-622 i

NEEDLE SET, JET

Price €81.92
#3 16013-KR3-980 i

FLOAT SET

Price €33.26
#4 16015-MFC-621

CHAMBER SET, FLOAT

Price €260.74
#5 16016-MFC-621

SCREW SET

Price €59.26
Contact us
#6 16029-MAK-651

SCREW SET

Price €68.93
#7 16037-MAK-000 i

PLATE SET, VALVE

Price €39.82
#8 16046-MY6-770 i

VALVE SET, STARTER

Price €71.99
#9 16048-MAN-620

VALVE SET, AIR CUT

Price €195.42
#10 16050-MFC-621

SPRING, COMPRESSION COIL

Price €29.56
Contact us
#11 16060-MAK-000 i

SENSOR ASSY, THROTTLE

Price €320.06
#12 16070-MFC-621

HEATER ASSY

Contact us
#13 16076-ND5-004 i

O-RING, 13X43

Price €5.34
#14 16080-MFC-741

SCREW, TORX, 5X10

Price €4.51
Contact us
#34 93500-050101A i

SCREW, PAN, 5X10

Price €0.85
#15 16100-MFC-622 i

CARBURETOR ASSY (VE95A A)

Price €872.18
#15 16100-MFC-742

CARBURETOR ASSY (VE95A P)

Contact us
#16 16107-MK4-602

TOP COMP

Price €81.50
#17 16111-MFC-621

PISTON COMP, VACUUM

Price €172.02
#18 16134-MFC-621

BINDER

Price €25.88
#19 16140-MAK-000

COVER, THROTTLE SENSOR

Price €21.06
#20 16145-MZ2-780

JOINT, CONNECTOR

Price €21.79
#21 16155-MN9-004 i

VALVE COMP, FLOAT

Price €48.18
#22 16163-KM4-004

CLIP, TUBE

Price €6.52
#23 16163-KPK-901 i

GASKET, FLOAT CHAMBER

Price €15.12
#24 16165-MFC-621

HOLDER, NEEDLE JET

Price €59.58
#25 16172-MW2-900

COLLAR, SETTING

Price €13.06
#26 16180-ML6-671

JOINT

Price €20.24
#27 16180-195-731 i

T-JOINT

Price €17.86
#28 16185-MN9-004

PLATE, BUFFER

Price €21.24
#29 16198-MAK-610 i

TUBE

Price €6.79
#30 16199-MFC-621

STAY, WIRE

Price €64.92
#30 16199-MFC-741

STAY, WIRE

Price €67.52
Contact us
#31 16199-MN9-004 i

TUBE

Price €18.56
#32 93500-040081A i

SCREW, PAN, 4X8

Price €0.95
#33 93500-040141A i

SCREW, PAN, 4X14

Price €0.95
#35 93892-0401018 i

SCREW-WASHER, 4X10

Price €0.85
#36 94591-44000

CLIP, 4X40

Price €2.78
#37 95002-02079

CLIP, TUBE (B7)

Price €0.88
#38 95002-02089

CLIP, TUBE (B1 8)

Price €0.88
#39 95005-3518010

TUBE, 35X180 (95005-35001-10M)

Price €5.40
Contact us
#40 95005-3540050

TUBE, 35X400 (95005-35001-50M)

Price €5.02
Contact us
#41 95005-4530050

TUBE, 45X300 (95005-45001-50M)

Price €3.64
Contact us
#42 95005-4534050

TUBE, 45X340 (95005-45001-50M)

Contact us
#43 96700-0601218

BOLT, SOCKET, 6X12

Contact us
#44 99101-MFC1680 i

JET, 168

Price €12.91
#45 99104-KC10500 i

JET, SLOW, 50

Price €13.45
