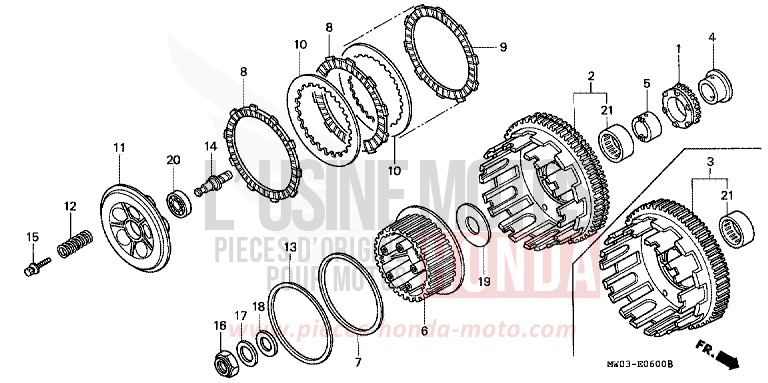

CLUTCH for Fireblade SPARKLER BLACK PEARL (NH343K) from 1994

CLUTCH for Fireblade SPARKLER BLACK PEARL (NH343K) from 1994
Reference
Product name
#1 15131-MV9-671

SPROCKET, OIL PUMP DRIVE (25T)

Contact us
#2 22100-MAE-000 i

OUTER COMP, CLUTCH (76T/76T)

Price €637.56
Contact us
#4 22116-MV9-670

COLLAR, OIL PUMP SPROCKET

Contact us
#5 22117-MW0-000

COLLAR, DISTANCE

Price €38.38
Contact us
#6 22120-MW0-000

CENTER, CLUTCH

Price €178.86
Contact us
#7 22125-ML7-000

SEAT OF SPRING OF JUDDER

Price €16.38
#8 22201-MAE-000 i

RIEBSCHEIBE, CLUTCH

Price €19.18
#9 22202-MAE-000 i

REIBSCHEIBE B, CLUTCH

Price €16.50
#10 22321-MW0-000

PLATE, CLUTCH

Price €18.00
#11 22350-ML7-000

PLATE, CLUTCH PRESSURE

Price €110.58
Contact us
#12 22401-MS8-000

SPRING, CLUTCH

Price €7.42
#13 22402-MW0-000

SPRING, JUDDER

Price €34.55
Contact us
#14 22847-MAE-000 i

PIN, CLUTCH LIFTER

Price €67.55
#15 90022-MM5-000 i

BOLT-WASHER, 6X25

Price €5.21
#16 90231-MM5-000

LOCK NUT, 22MM

Price €15.35
#17 90432-MM5-000

WASHER ELASTIQUE, 22MM

Price €12.07
#19 90459-MM4-000

WASHER, 60X25X2

Price €14.40
#20 91008-362-000 i

RADIAL BALL BEARING, 16003

Price €33.26
#21 91026-MV9-671

ROULEMENT A AIGUILLES, 35X42X23

Price €81.01
