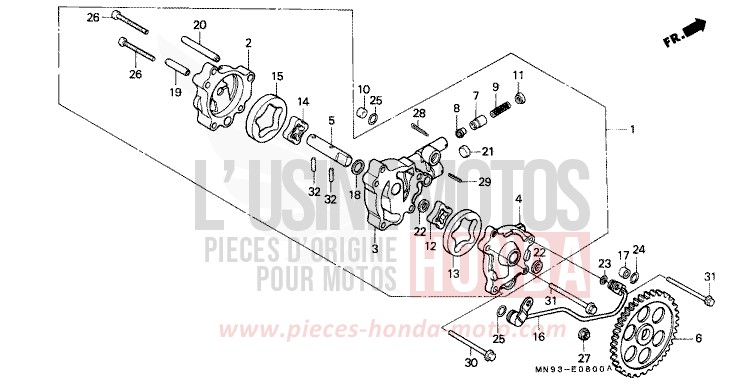

OIL PUMP for Dominator FIGHTING RED (R134) from 1988

OIL PUMP for Dominator FIGHTING RED (R134) from 1988
Reference
Product name
#1 15100-MN9-000

PUMP ASSY, OIL

Contact us
#1 15100-MN1-771

PUMP ASSY, OIL

Contact us
#2 15101-MN9-000

BASE, OIL PUMP

Contact us
#3 15102-MN9-300

SPACER, OIL PUMP

Contact us
#3 15102-MN1-770

SPACER, OIL PUMP

Price €73.39
Contact us
#4 15103-MG3-000

BODY, OIL PUMP

Contact us
#4 15103-MN1-770

BODY, OIL PUMP

Contact us
#5 15104-MG3-000

SHAFT, OIL PUMP

Contact us
#5 15104-MN1-770

SHAFT, OIL PUMP

Price €26.77
#6 15105-MN1-670

GEAR, OIL PUMP DRIVEN (47T)

Price €85.58
#7 15106-MG3-000

VALVE, OIL LEAK STOPPER

Price €22.79
#8 15107-MG3-000

SEAL, OIL LEAK STOPPER

Price €6.62
#9 15108-MG3-000

SPRING, OIL LEAK STOPPER

Price €5.10
#10 15109-MG3-000

ORIFICE, 55MM

Price €14.92
#11 15111-MG3-000

SEAT B, SPRING

Price €4.25
#12 15115-MG3-000

ROTOR A, OIL PUMP INNER

Price €19.16
#13 15116-MG3-000

ROTOR A, OIL PUMP OUTER

Price €28.68
#14 15121-MG3-000

ROTOR, INNER

Price €22.43
#15 15122-MG3-000

ROTOR, OUTER

Price €31.88
#16 15510-MK2-000

PIPE COMP, OIL

Price €75.07
#17 17958-197-300

HOLDER

Price €7.69
#18 90456-333-000

WASHER, THRUST, 11MM

Price €7.07
#19 90701-MG3-000

DOWEL PIN, 8X24

Price €6.79
#20 90702-MG3-000

DOWEL PIN, 8X44

Contact us
#21 90802-MG3-000

PLUG, SEALING, 11MM

Contact us
#22 91208-MN1-770

OIL SEAL, 11X15X3

Price €7.26
#23 91301-473-003

O-RING, 7X17

Price €3.74
#24 91302-PJ4-004

O-RING, 96X19 (ARAI)

Price €3.68
#25 91306-MG3-000

O-RING, 15X95

Price €5.41
#26 93500-050400A

SCREW, PAN, 5X40

Price €0.84
#27 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#28 94201-03200

PIN, SPLIT, 3MM

Price €0.73
#29 94305-25182

PIN, SPRING, 25X18

Price €1.48
#30 96000-0605500

BOLT, FLANGE, 6X55

Price €1.70
#31 96000-0606000

BOLT, FLANGE, 6X60

Price €1.70
#32 96220-40158

ROLLER, 4X158

Price €0.38
