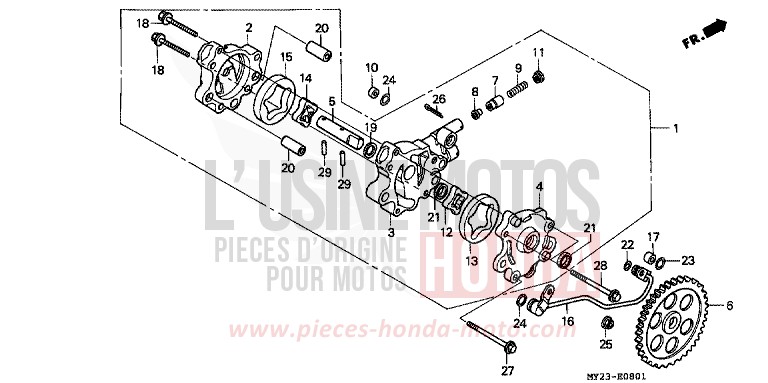

OIL PUMP (NX500P/R/NX650P/R) for Dominator CHECKER BLACK METALLIC (NH217K) from 1993

OIL PUMP (NX500P/R/NX650P/R) for Dominator CHECKER BLACK METALLIC (NH217K) from 1993
Reference
Product name
#1 15100-MY6-670

PUMP ASSY, OIL

Price €357.80
#2 15101-MY6-670

BASE, OIL PUMP

Price €48.59
#3 15102-MY6-670

SPACER, OIL PUMP

Price €108.62
#4 15103-MY6-670

BODY, OIL PUMP

Price €49.51
Contact us
#5 15104-MN1-770

SHAFT, OIL PUMP

Price €26.77
#6 15105-MN1-671

GEAR, OIL PUMP DRIVEN (47T)

Price €106.84
#7 15106-MG3-000

VALVE, OIL LEAK STOPPER

Price €22.79
#8 15107-MG3-000

SEAL, OIL LEAK STOPPER

Price €6.62
#9 15108-MG3-000

SPRING, OIL LEAK STOPPER

Price €5.10
#10 15109-MG3-000

ORIFICE, 55MM

Price €14.92
#11 15111-MG3-000

SEAT B, SPRING

Price €4.25
#12 15115-MG3-000

ROTOR A, OIL PUMP INNER

Price €19.16
#13 15116-MG3-000

ROTOR A, OIL PUMP OUTER

Price €28.68
#14 15121-MG3-000

ROTOR, INNER

Price €22.43
#15 15122-MG3-000

ROTOR, OUTER

Price €31.88
#16 15510-MK2-000

PIPE COMP, OIL

Price €75.07
#17 17958-197-300

HOLDER

Price €7.69
#18 90014-ZE6-000

BOLT, FLANGE, 6X35 (CT200)

Price €2.45
#19 90456-333-000

WASHER, THRUST, 11MM

Price €7.07
#20 90701-MG3-000

DOWEL PIN, 8X24

Price €6.79
#21 91208-MN1-771

OIL SEAL, 11X15X3 (KOYO)

Price €7.26
#22 91301-473-003

O-RING, 7X17

Price €3.74
#23 91302-PJ4-004

O-RING, 96X19 (ARAI)

Price €3.68
#24 91306-MG3-000

O-RING, 15X95

Price €5.41
#25 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#26 94201-03200

PIN, SPLIT, 3MM

Price €0.73
#27 96001-0605500

BOLT, FLANGE, 6X55

Price €1.70
#28 96001-0606000

BOLT, FLANGE, 6X60

Price €1.70
#29 96220-40158

ROLLER, 4X158

Price €0.38
