SWINGARM/CHAIN CASE 🏍️ Dominator 250
REAR FENDER 🏍️ Dominator 250

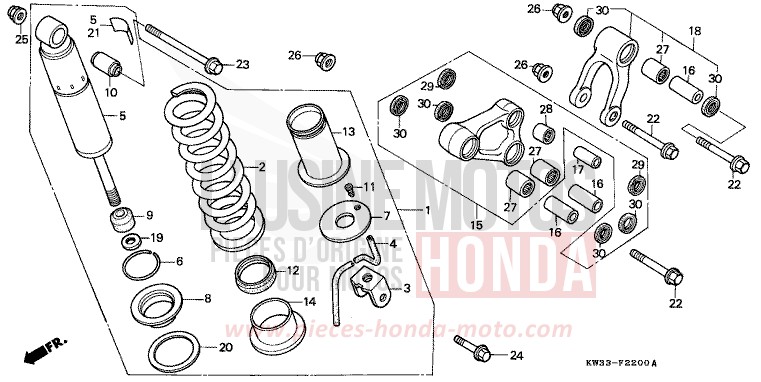

REAR CUSHION for Dominator 250 ROSS WHITE (NH196) from 1988

REAR CUSHION for Dominator 250 ROSS WHITE (NH196) from 1988
Reference
Product name
#1 52400-KW3-672ZB

CUSHION ASSY, RR (SHOWA) R134 (R134 FIGHTING RED)

Contact us
#2 52401-KW3-671ZB

SPRING, RR CUSHION R134 (R134 FIGHTING RED)

Contact us
#3 52403-KW3-003

CONNECTION ()

Contact us
#4 52405-KW3-000

ABLASSCHLAUCH

Contact us
#5 52410-KW3-671

DAMPER COMP., H (SHOWA)

Contact us
#5 52410-KW3-672

DAMPER COMP, RR (SHOWA)

Contact us
#6 52423-KE1-003

RING C, ANSCHLAG

Price €12.72
#7 52424-KW3-003

ANSCHLAG, FEDERSEAT

Contact us
#8 52425-KW3-003

ANSCHLAG, SPRING

Price €33.65
#9 52427-KW3-003

ANSCHLAGGUMMI

Contact us
#10 52451-GC4-000

BUSH, DAMPER LOWER

Price €23.93
#11 52456-KB7-003

CONNECTOR OF PIPE ()

Price €3.66
Contact us
#12 52457-KE1-003

STAUBDICHTRING

Price €10.15
#13 52458-KE1-003

GUIDE, SPRING

Price €28.60
#14 52459-KE1-003

FEDERSEAT C (SHOWA)

Price €27.96
#15 52460-KW3-000

ARM COMP., CUSHION

Contact us
#16 52463-KW3-000

COLLAR, KISSENARMZAPFEN

Contact us
#17 52464-KW3-000

BAND LOWER D'DAMPER

Price €21.12
#18 52470-KW3-670

PLEUELSTANGE COMP., CUSHION

Contact us
#19 52482-KW3-003

NUT, HEX, 12MM

Price €7.32
#20 52485-KW3-003

FEDERSEAT

Price €13.09
#21 87516-ML6-771

WARNUNGSZETTEL, H DAMPER

Price €4.26
#21 87516-KY7-911 i

LABEL, RR DAMPER WARNING

Price €11.44
#22 90128-KW3-000

FLANGE BOLT, 12X72

Price €15.95
#23 90152-KW3-000 i

FLANGE BOLT, 10X102

Price €11.51
Contact us
#24 90153-KW3-003 i

FLANGE BOLT, 10X45

Price €10.25
#25 90304-GE8-003 i

U-NUT, 10MM (FUSE RASHI)

Price €6.92
#26 90306-KF0-003 i

FLANGE NUT, 12MM (FUSE RASHI)

Price €8.11
#27 91071-KV3-005 i

NEEDLE BEARING (KOYO)

Price €26.09
#28 91079-KN5-003

BEARING

Price €28.18
#29 91201-GG0-003 i

GASKET SEALING OIL, 15X24X5

Price €6.58
#30 91262-MG7-005 i

GASKET SEALING OIL, 17X27X5

Price €7.08
