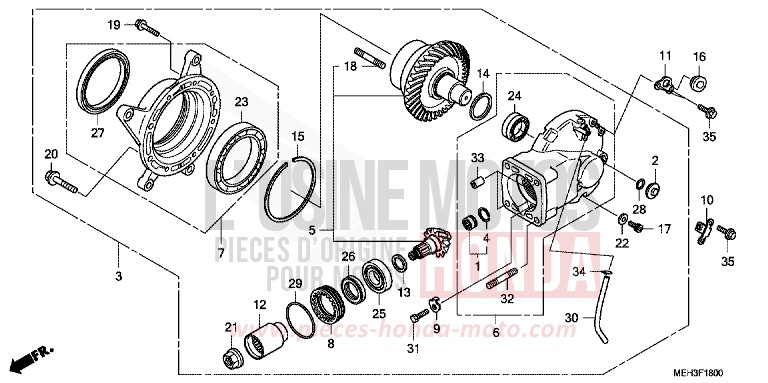

FINAL DRIVEN GEAR for DN-01 GRAPHITE BLACK (NHB01) from 2008

FINAL DRIVEN GEAR for DN-01 GRAPHITE BLACK (NHB01) from 2008
Reference
Product name
#1 06910-MBL-610

BEARING SET, NEEDLE

Price €40.90
#2 12361-035-000

CAP, TAPPET ADJUSTING HOLE

Price €7.52
#4 41305-MB4-770

RING, STOPPER

Price €9.89
#8 41331-MN5-000

RETAINER, BEARING

Price €136.51
#9 41332-415-000

LOCK A, BEARING ADJUSTING (SINGLE TAB)

Price €6.18
#9 41333-415-000

LOCK B, BEARING ADJUSTING (DOUBLE TABS)

Price €6.18
#12 41410-ME9-770

JOINT, PINION

Price €87.04
#13 41450-MG9-000

SHIM A, PINION GEAR (132)

Price €18.17
#13 41451-MG9-000

SHIM B, PINION GEAR (138)

Price €10.60
#13 41452-MG9-000

SHIM C, PINION GEAR (144)

Price €18.17
#13 41453-MG9-000

SHIM D, PINION GEAR (150)

Price €18.17
#13 41454-MG9-000

SHIM E, PINION GEAR (156)

Price €18.17
#13 41455-MG9-000

SHIM F, PINION GEAR (162)

Price €18.17
#13 41456-MG9-000

SHIM G, PINION GEAR (168)

Price €18.17
#14 41510-MS9-750

SHIM A, SHAFT (173)

Contact us
#14 41511-MS9-750

SHIM B, SHAFT (176)

Contact us
#14 41512-MS9-750

SHIM C, SHAFT (179)

Contact us
#14 41513-MS9-750

SHIM D, SHAFT (182)

Contact us
#14 41514-MS9-750

SHIM E, SHAFT (185)

Contact us
#14 41515-MS9-750

SHIM F, SHAFT (188)

Contact us
#14 41516-MS9-750

SHIM G, SHAFT (191)

Contact us
#14 41517-MS9-750

SHIM H, SHAFT (194)

Contact us
#14 41518-MS9-750

SHIM I, SHAFT (197)

Contact us
#14 41519-MS9-750

SHIM J, SHAFT (200)

Contact us
#14 41520-MS9-750

SHIM K, SHAFT (203)

Contact us
#14 41521-MS9-750

SHIM L, SHAFT (206)

Contact us
#14 41522-MS9-750

SHIM M, SHAFT (209)

Contact us
#14 41523-MS9-750

SHIM N, SHAFT (212)

Price €26.53
#14 41524-MS9-750

SHIM O, SHAFT (215)

Contact us
#14 41525-MS9-750

SHIM P, SHAFT (045)

Contact us
#15 41530-MCA-000

SHIM A, RING GEAR (182)

Price €28.45
#15 41531-MCA-000

SHIM B, RING GEAR (188)

Price €28.45
#15 41532-MCA-000

SHIM C, RING GEAR (194)

Price €28.45
#15 41533-MCA-000

SHIM D, RING GEAR (200)

Price €24.59
#15 41534-MCA-000

SHIM E, RING GEAR (206)

Price €28.45
#15 41535-MCA-000

SHIM F, RING GEAR (212)

Price €28.45
#15 41536-MCA-000

SHIM G, RING GEAR (218)

Price €20.45
#15 41537-MCA-000

SHIM H, RING GEAR (224)

Price €28.45
#15 41538-MCA-000

SHIM I, RING GEAR (230)

Price €28.45
#15 41539-MCA-000

SHIM J, RING GEAR (236)

Price €20.45
#15 41540-MCA-000

SHIM K, RING GEAR (242)

Price €28.45
#15 41541-MCA-000

SHIM L, RING GEAR (248)

Price €28.45
#15 41542-MCA-000

SHIM M, RING GEAR (254)

Price €29.21
#15 41543-MCA-000

SHIM N, RING GEAR (260)

Price €29.21
#15 41544-MCA-000

SHIM P, RING GEAR (266)

Price €13.55
#16 83551-GE2-000

GROMMET, AIR CLEANER CASE

Price €4.86
#17 90109-ME5-770

BOLT, SOCKET, 8X11

Price €8.70
#18 90125-MCA-300

BOLT, STUD, 12X46

Price €9.72
#19 90133-MCA-000

BOLT, FLANGE, 8X30

Price €3.35
#20 90134-MCA-000

BOLT, FLANGE, 10X38

Price €7.16
#21 90381-MB0-010

NUT, HEX, 16MM

Price €12.96
#22 90471-580-000

PACKING, 8MM

Price €2.48
#24 91052-MS9-003

BEARING, RADIAL BALL, 30X55X18

Price €39.44
#25 91061-MT3-003

BEARING, RADIAL BALL (QJ3/28V1)

Price €37.06
#26 91262-MCH-003

OIL SEAL, 39X56X7

Price €11.53
#28 91302-001-020

O-RING, 308MM

Price €5.17
#29 91359-MG9-003

O-RING, 645X35 (ARAI)

Price €7.42
#31 92101-060120A

BOLT, HEX, 6X12

Price €1.04
#33 94301-12160

PIN A, DOWEL, 12X16

Price €2.04
#34 95002-02079

CLIP, TUBE (B7)

Price €0.86
#35 95701-0601200

BOLT, FLANGE, 6X12

Price €1.13
#3 41300-MEH-000

GEAR ASSY, FINAL

Contact us
#5 41310-MEH-000

GEAR SET, FINAL

Contact us
#6 41311-MEH-000

CASE SUB ASSY, FINAL GEAR

Contact us
#7 41320-MEH-000

COVER SUB ASSY, FINAL GEAR

Price €386.24
#10 41352-MEH-010

STAY A, FINAL GEAR COVER

Price €5.84
#11 41353-MEH-000

STAY B, FINAL GEAR COVER

Price €5.84
#23 91051-MEH-003

BEARING, RADIAL BALL, 100X125X13

Price €39.44
#27 91265-MEH-003

OIL SEAL, 997X117X7

Price €30.60
#30 91451-MEC-A01

TUBE, FINAL GEAR BREATHER

Contact us
#32 92900-100400E

BOLT, STUD, 10X40

Price €3.19
