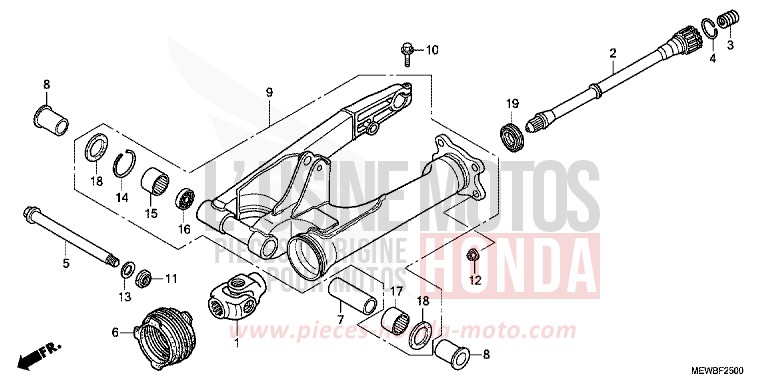

SWINGARM for Deauville ABS CARNELIAN RED METALLIC (R296) from 2011

SWINGARM for Deauville ABS CARNELIAN RED METALLIC (R296) from 2011
Reference
Product name
#1 40200-MR6-671

JOINT COMP, YOKE

Price €329.40
#2 40201-MBL-610

SHAFT, PROPELLER

Price €193.55
#3 40215-ME9-003 i

SPRING, PROPELLER SHAFT

Price €9.53
#4 40221-MB0-000

RING OF STOPPER

Price €8.45
#5 52101-MEW-920

BOLT, SWINGARM PIVOT

Price €52.49
#6 52104-MEW-920

BOOT, JOINT

Price €19.15
#7 52141-MEW-920

COLLAR, CENTER PIVOT DISTANCE

Price €37.46
#8 52142-MEW-920

COLLAR, PIVOT DISTANCE

Price €31.54
#9 52200-MEW-920

SWINGARM SUB ASSY, RR

Price €1,297.96
#10 90105-GM9-740 i

FLANGE BOLT, 8X32

Price €5.71
#11 90306-MCS-G00 i

NUT U, 18MM

Price €22.98
#12 90308-357-000

NUT, HEX, 10MM

Price €11.66
#13 90432-MCS-G00

WASHER, SPECIAL, 18MM

Price €10.44
#14 90651-MEW-920

CIRCLIP INNER (37)

Price €8.86
#15 91071-MBW-E11 i

BEARING, NEEDLE

Price €47.27
#16 91071-MEW-921 i

BEARING, BALL RADIAL, 20X37X9

Price €24.90
#17 91071-MR7-003

NEEDLE BEARING

Price €28.46
#18 91202-MR7-003 i

COVER-POUSSIERE, 28X37X4

Price €8.05
#19 91261-ME9-005 i

GASKET SEALING D'OIL, 27X43X7

Price €12.41
