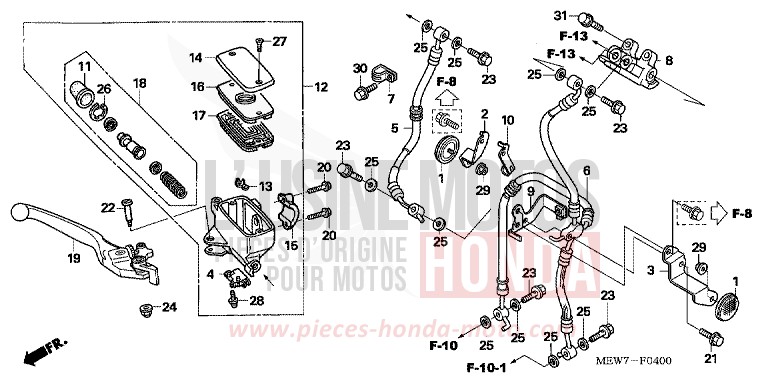

FR. BRAKE MASTER CYLINDER for Deauville SHASTA WHITE (NH138) from 2006

FR. BRAKE MASTER CYLINDER for Deauville SHASTA WHITE (NH138) from 2006
Reference
Product name
#4 35340-MM5-600

SWITCH ASSY, FR STOP

Price €44.35
#5 45124-MEW-921

HOSE COMP A, FR BRAKE MAIN

Price €64.02
#6 45128-MEW-921

HOSE COMP C, FR BRAKE MAIN

Price €119.00
#7 45156-MEW-920

CLAMPER, FR BRAKE HOSE

Price €6.71
Contact us
#8 45157-MEW-921

JOINT, BRAKE HOSE

Price €104.45
#9 45158-MEW-920

STAY COMP, L FR BRAKE HOSE

Price €11.58
#10 45159-MEW-920

CLAMPER, R FR BRAKE HOSE

Price €7.90
#11 45504-410-003

BOOT COMP

Price €15.22
#12 45510-MBZ-305

CYLINDER SUB ASSY, FR MASTER

Price €282.23
#13 45512-MA6-006

PROTECTOR

Price €74.21
#14 45513-MM5-016

CAP, MASTER CYLINDER (NISSIN)

Price €52.61
#15 45517-166-006

HOLDER, MASTER CYLINDER

Price €22.57
#16 45518-MM5-006

PLATE, DIAPHRAGM

Price €15.23
#17 45520-MM5-006

DIAPHRAGM

Price €33.04
#18 45530-471-831

CYLINDER SET, MASTER

Price €83.28
#19 53170-MBR-J11

LEVER ASSY, R HANDLE

Price €78.05
#20 90101-MBZ-G00

BOLT, FLANGE, 6X22

Price €3.98
#21 90101-MEW-920

BOLT, FLANGE, 6X21 (SH)

Price €7.01
#22 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#23 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#24 90201-415-000

NUT, CAP, 6MM

Price €5.94
#25 90545-300-000

WASHER, OIL BOLT

Price €6.41
#26 90651-MA5-671

CIRCLIP

Price €5.83
#27 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#28 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#30 96001-0601207

BOLT, FLANGE, 6X12

Price €1.22
#31 96001-0603200

BOLT, FLANGE, 6X32

Price €1.48
