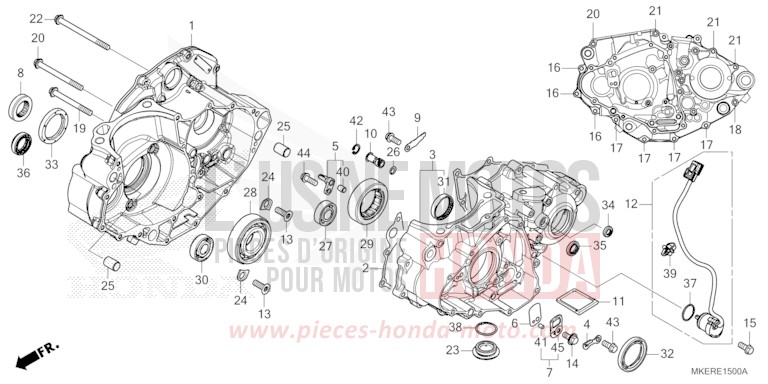

CRANKCASE for CRF450R EXTREME RED (R292) from 2025

CRANKCASE for CRF450R EXTREME RED (R292) from 2025
Reference
Product name
#1 11100-MKE-A70

CRANKCASE COMP, R

Price €991.88
#2 11191-MKE-A01

GASKET, CRANKCASE

Price €22.42
#3 11200-MKE-AF1

CRANKCASE COMP, L

Price €1,549.72
#4 11206-MKE-A00

PLATE, CAM CHAIN GUIDE

Price €3.82
#5 11210-MKE-A71

JET COMP, PISTON

Price €64.08
#6 11221-MKE-A00

VALVE, REED

Price €18.60
#8 13415-MKE-A00

COLLAR, CRANKSHAFT

Price €58.21
#9 15201-MKE-A00

PLATE, OIL GUIDE

Price €11.10
#10 15220-MEN-A30

VALVE ASSY, RELIEF

Price €44.92
#11 15421-MKE-A70

SCREEN, OIL FILTER

Price €37.66
#12 35759-MKE-AF1

SWITCH ASSY, CHANGE

Price €164.65
#13 90001-MEN-850

SCREW, SPECIAL FLAT, 6X17

Price €6.01
#14 90019-MKE-A00

BOLT-WASHER, 6X14

Price €4.75
#15 90020-GHB-620

BOLT, FLANGE, 6X12

Price €5.03
#16 90025-GHB-690

BOLT, FLANGE, 6X28 (S-NSHF)

Price €5.38
#17 90025-GHB-740

BOLT, FLANGE, 6X40

Price €7.10
#18 90025-GHB-760

BOLT, FLANGE, 6X50

Price €6.08
#19 90025-GHB-780

BOLT, FLANGE, 6X60

Price €6.26
#20 90025-GHB-800

BOLT, FLANGE, 6X70

Price €7.21
#21 90025-GHB-810

BOLT, FLANGE, 6X75

Price €7.18
#22 90025-GHB-820

BOLT, FLANGE, 6X80

Price €7.54
#23 90088-MKE-A70

BOLT, DRAIN, 30MM

Price €28.20
#24 90441-MEN-A30

PLATE, BEARING HOLDER

Price €10.91
#25 90701-MKE-A00

DOWEL PIN, 14X20

Price €10.03
#26 90751-GK1-003

O-RING, 85X17

Price €3.83
#27 91001-MEN-A31

BEARING, RADIAL BALL SPECIAL, 6202

Price €39.25
#28 91001-MKE-A71

BEARING, RADIAL BALL, 30X72X19

Price €39.25
#29 91002-MEY-671

BEARING, SPECIAL ROLLER (NTN)

Price €91.98
#30 91004-MKE-A01

BEARING, RADIAL BALL, 15X38X11

Price €39.25
#31 91022-KA4-741

BEARING, SHELL, 33X38X8 (NTN)

Price €11.78
#32 91201-MEB-671

OIL SEAL, 38X52X7 (ARAI)

Price €22.43
#33 91202-MKE-A01

OIL SEAL, 39X53X7

Price €26.20
#34 91202-MKE-AF1

OIL SEAL, 7X145X5

Price €6.29
#35 91203-KSP-911

OIL SEAL, 14X22X5 (ARAI)

Price €5.56
#36 91203-MKE-A01

OIL SEAL, 22X33X75

Price €10.60
#37 91305-KC1-850

O-RING, 165X25

Price €5.46
#38 91356-KWV-000

O-RING, 30MM

Price €3.34
#39 91541-S0A-003

CLIP, HARNESS BAND (BLACK) (145MM)

Price €4.24
#40 94301-08100

DOWEL PIN, 8X10

Price €1.78
#41 94303-04065

PIN C, DOWEL, 4X65

Price €2.33
#42 94520-14000

CIRCLIP, INTERNAL, 14MM

Price €0.86
#43 96001-0601400

BOLT, FLANGE, 6X14

Price €1.32
#44 96001-0601600

BOLT, FLANGE, 6X16

Price €1.22
#45 11231-K95-AG0

STOPPER, REED VALVE

Price €15.55
