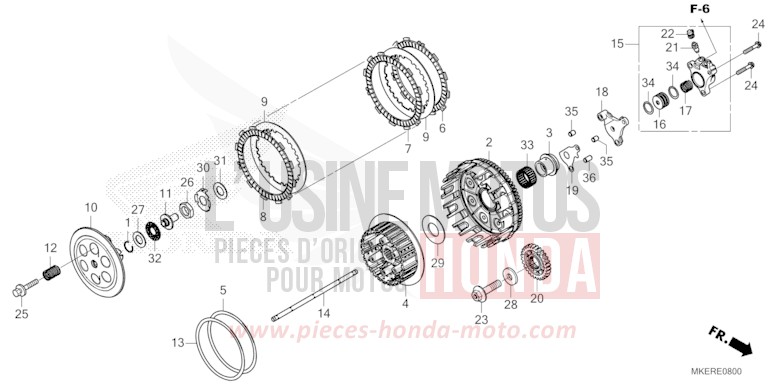

CLUTCH for CRF450R EXTREME RED (R292) from 2025

CLUTCH for CRF450R EXTREME RED (R292) from 2025
Reference
Product name
#1 13115-147-000

CLIP, PISTON PIN, 10MM

Price €2.68
#3 22116-MKE-AF0

GUIDE, CLUTCH OUTER

Price €38.30
#4 22120-MKE-AF0

CENTER, CLUTCH

Price €111.76
#5 22125-MBN-670

SEAT, JUDDER SPRING

Price €11.24
#6 22203-MKE-BD0

DISK B, CLUTCH FRICTION

Price €16.46
#7 22201-MEN-670

DISK B, CLUTCH FRICTION

Price €18.50
#8 22202-MKE-BD0

DISK, CLUTCH FRICTION

Price €16.46
#9 22321-KZ3-690

PLATE B, CLUTCH

Price €14.76
#10 22351-MKE-A70

PLATE, CLUTCH PRESSURE

Price €73.98
#11 22352-MKE-A70

PIECE, CLUTCH LIFTER

Price €51.55
#12 22401-MKE-AF0

SPRING, CLUTCH

Price €8.51
#13 22402-MBN-670

SPRING, JUDDER

Price €23.34
#14 22850-MKE-BD0

ROD COMP, CLUTCH LIFTER

Price €80.99
#15 22860-MKE-AF1

CYLINDER ASSY, SLAVE

Price €218.60
#16 22862-MKE-AF1

PISTON COMP, SLAVE CYLINDER

Price €119.81
#17 22863-MKE-AF1

SPRING, SLAVE CYLINDER

Price €8.11
#18 22866-MKE-AF0

HOLDER, SLAVE CYLINDER

Price €62.40
#19 22867-MKE-AF0

GASKET B, SLAVE CYLINDER

Price €6.50
#20 23121-MKE-A00

GEAR, PRIMARY DRIVE (28T)

Price €123.76
#21 43352-568-003

SCREW, BLEEDER (NISSIN)

Price €11.36
#22 43353-461-771

CAP, BLEEDER

Price €9.28
#23 90013-MEY-670

BOLT, SPECIAL, 12X47

Price €13.18
#24 90020-GHB-710

BOLT, FLANGE, 6X32

Price €6.41
#25 90024-MEN-A70

BOLT-WASHER, 6X35

Price €7.57
#26 90235-MEN-A30

NUT, 18MM

Price €13.34
#27 90401-MKE-A70

WASHER, 121X25X1

Price €8.15
#28 90402-KW6-960

WASHER, PLAIN, 12MM

Price €12.76
#29 90421-MKE-A50

WASHER, 23X43X3

Price €13.81
#30 90461-KZ3-J10

WASHER, LOCK, 18MM

Price €10.67
#31 90501-ML3-910

WASHER, 18X32X2

Price €8.39
#32 91001-147-003

BEARING, NEEDLE, 12MM (NTN)

Price €19.18
#33 91022-MB0-003

BEARING, NEEDLE, 30X35X17

Price €36.55
#34 91301-MKE-AF1

O-RING, 211X245

Price €4.30
#35 94301-08100

DOWEL PIN, 8X10

Price €1.78
#36 94301-08140

DOWEL PIN, 8X14

Price €2.02
