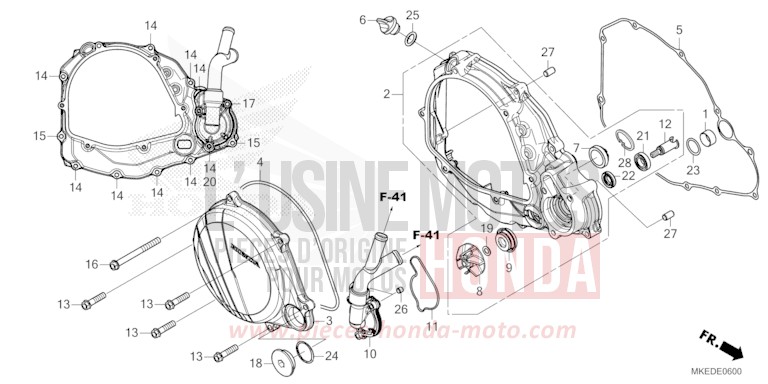

RIGHT CRANKCASE COVER/WATER PUMP for CRF450R EXTREME RED (R292) from 2021

RIGHT CRANKCASE COVER/WATER PUMP for CRF450R EXTREME RED (R292) from 2021
Reference
Product name
#1 11102-MKE-A00

COLLAR, WATER PASS

Price €11.70
#2 11330-MKE-AF0

COVER ASSY, R CRANKCASE

Price €670.02
#3 11351-MKE-AF0

COVER, CLUTCH

Price €140.06
#4 11352-MKE-A70

GASKET, CLUTCH COVER

Price €20.48
#5 11394-MKE-A71

GASKET, R COVER

Price €21.30
#6 15611-K95-A20

CAP, OIL FILLER

Price €27.20
#7 15661-MAS-003

FINDER, OIL LEVEL

Price €28.78
#8 19215-MEN-850

IMPELLER, WATER PUMP

Price €77.52
#9 19217-KRN-A61

SEAL, MECHANICAL

Price €107.38
#10 19220-MKE-AF0

COVER COMP, WATER PUMP

Price €175.97
#11 19226-MKE-A00

GASKET, WATER PUMP

Price €9.13
#12 19241-MKE-A00

SHAFT, WATER PUMP

Price €108.85
#13 90020-GHB-680

BOLT, FLANGE, 6X25

Price €5.96
#14 90020-GHB-690

BOLT, FLANGE, 6X28

Price €5.96
#15 90020-GHB-720

BOLT, FLANGE, 6X35

Price €6.20
#16 90020-GHB-790

BOLT, FLANGE, 6X65

Price €7.31
#17 90020-GHB-810

BOLT, FLANGE, 6X75

Price €7.91
#18 90087-HB5-000 i

CAP, 30MM

Price €24.88
#19 90447-KE1-000

WASHER, SEALING, 7MM

Price €5.71
#20 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#21 91002-MEN-A31

BEARING, BALL, 12X24X6

Price €25.33
#22 91201-148-003 i

OIL SEAL, 12X22X5 (ARAI)

Price €6.58
#23 91302-MKE-A70

O-RING, 24X19

Price €5.10
#24 91305-KF0-003 i

O-RING, 27X2 (ARAI)

Price €6.30
#25 91307-KRN-A41

D-RING, 14X3

Price €12.22
#26 91320-KE1-000

DOWEL PIN, 8X7

Price €7.91
#27 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#28 94520-32000

CIRCLIP, INTERNAL, 32MM

Price €1.74
